Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

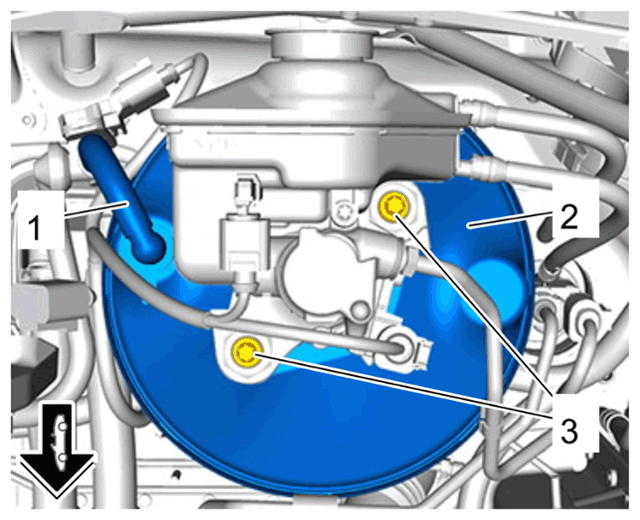

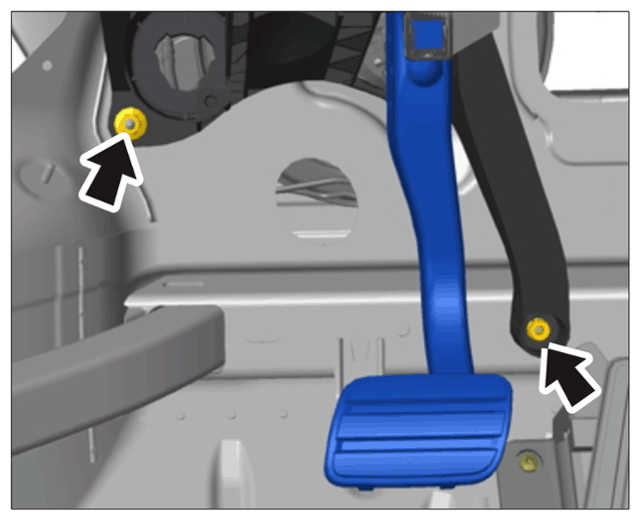

Brake booster to pedal module	Torx screw, M8 x 165 x 77	Tightening torque	23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

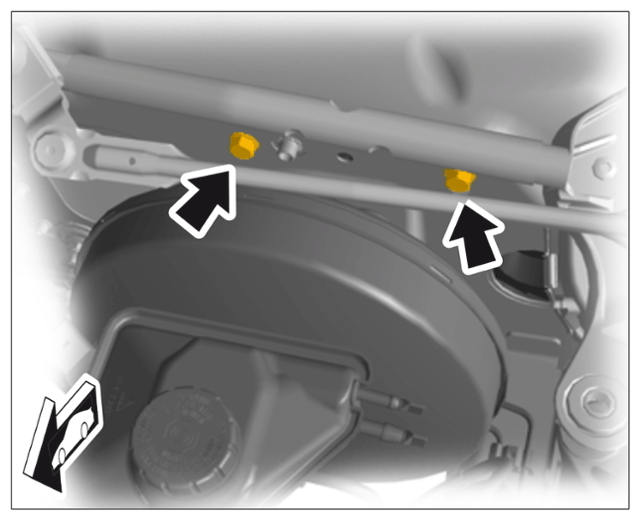

Mounting saddle to body

Hexagon-head bolt, M8 x 25

Tightening torque

23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting saddle to body

Hexagon nut, M8

Tightening torque

23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
