Installing Oil Feed Line For Turbocharger

Information

• O-rings must always be replaced.
• O-rings must be coated lightly with Kluber Syntheso Glep.

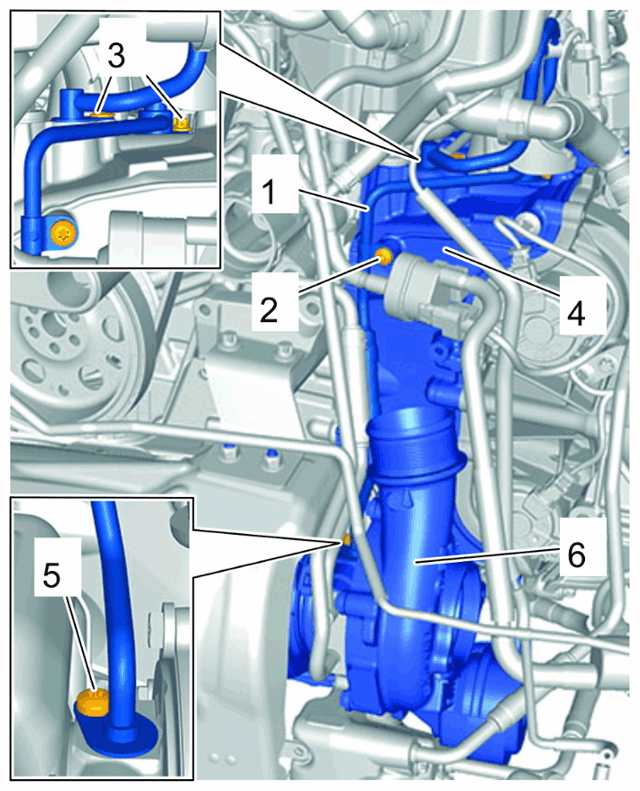

1. Install oil feed line for turbocharger -1  -.
   1. 1.1 Coat new O-rings with grease.
   2. 1.2 Place oil line in installation position.
   3. 1.3 Fit screw -2  - on the cylinder head -4  -.
   4. 1.4 Tighten screws -3  - on the connections to > Tightening torque 10 Nm (7.5 ftlb.)  .
   5. 1.5 Tighten screw -5  - to > Tightening torque 10 Nm (7.5 ftlb.)  .
   6. 1.6 Tighten screw -2  - on the cylinder head -4  - to > Tightening torque 10 Nm (7.5 ftlb.)  .
