Removing Pressure Pipe
WARNING: This page is about a different variant/trim than selected.

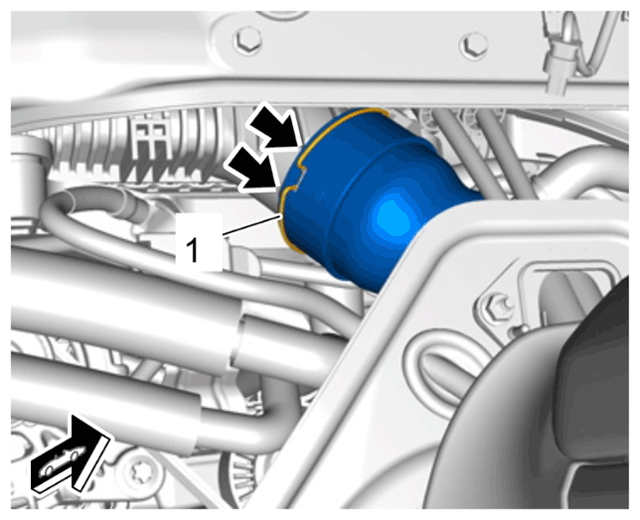

- Release connection to the charge-air cooler.
- 1.1 Loosen spring clamp -1
- and disconnect pressure pipe by pulling it downwards -arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

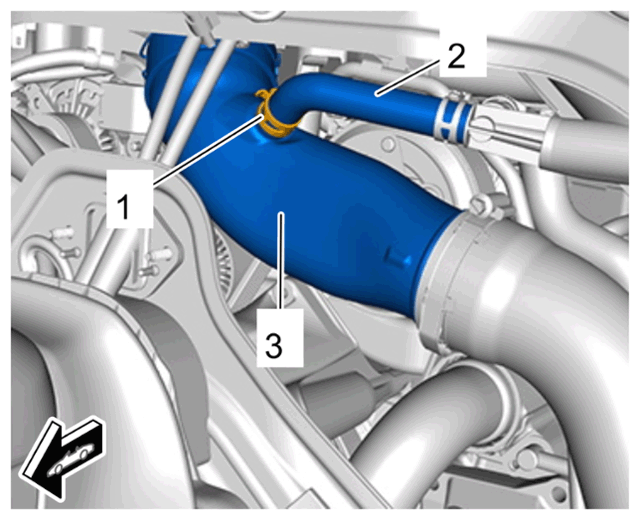

- Remove pressure pipe.
- 2.1 Loosen clamp -1
- and pull hose -2
- off the pressure pipe.
- 2.2 Guide pressure pipe -3
- out of the engine compartment.
