Installing Pressure Pipe
WARNING: This page is about a different variant/trim than selected.

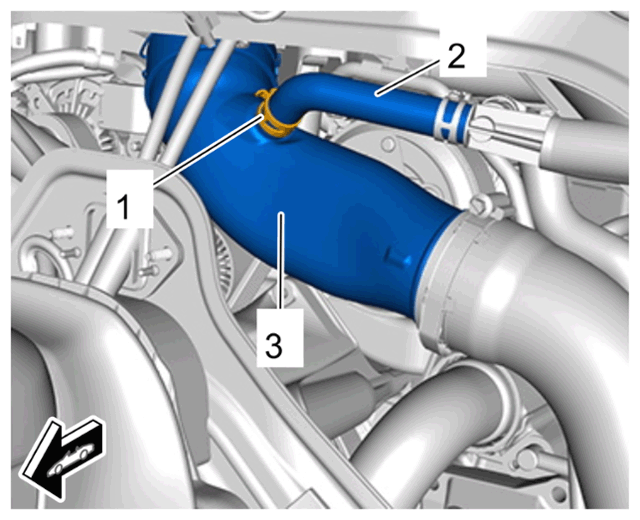

- Insert pressure pipe.
- 1.1 Fit hose -2
- and secure the clamp -1
-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

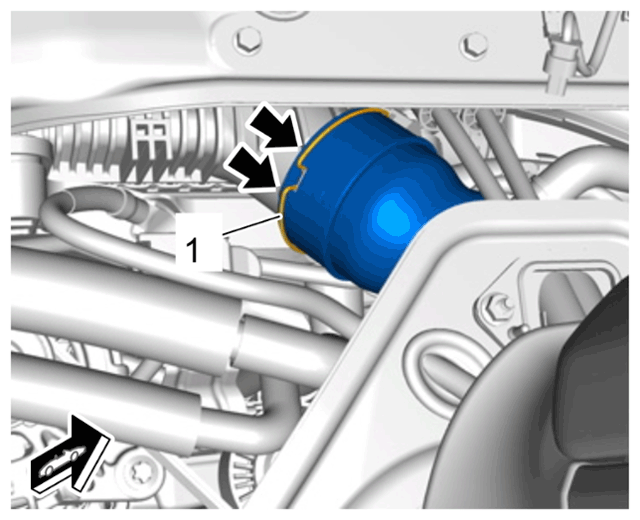

- Connect pressure pipe to charge-air cooler. The spring clamp -1
- must lock with an audible click.
