Installing Moulded Hose

WARNING: This page is about a different variant/trim than selected.

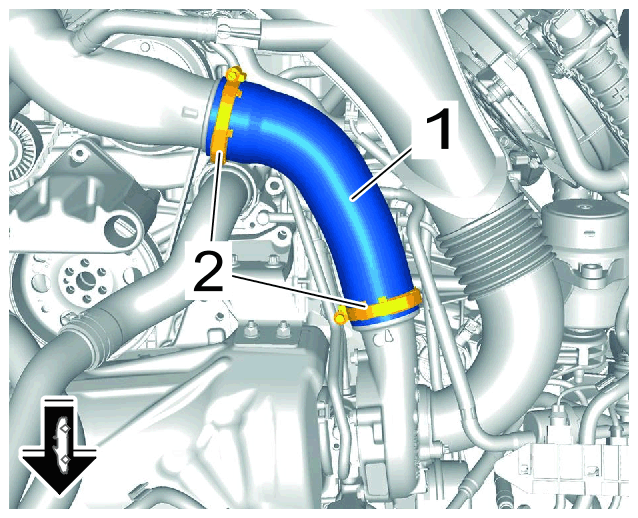

  1. Install moulded hose -1  - at the bottom.
    1. 1.1 Place moulded hose in installation position and secure screw-type clamps.

      > Tightening torque 5.5 Nm + 0.5 Nm

    G14945176Courtesy of PORSCHE CARS NORTH AMERICA, INC.

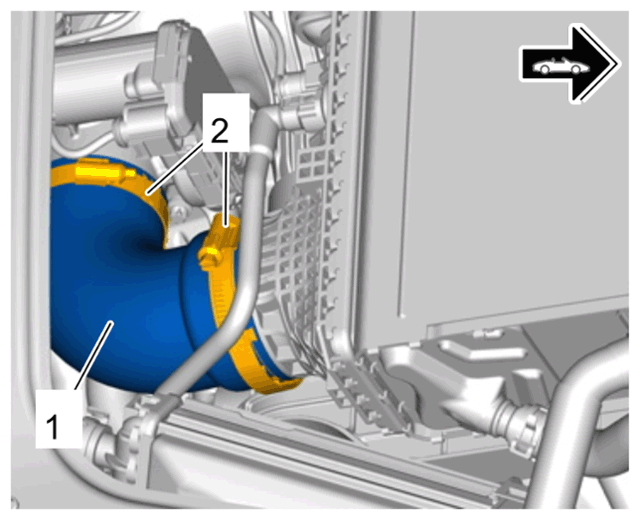

  2. Install moulded hose -1  - at the top.
    1. 2.1 Place moulded hose -1  - in installation position and secure screw-type clamps -2  -.

      > Tightening torque 5.5 Nm + 0.5 Nm

    G14945177Courtesy of PORSCHE CARS NORTH AMERICA, INC.
