Removing Turbocharger

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

WARNING: Hot fluid

Danger of scalding
- → Let the fluid cool down.
- → Wear personal protective gear.

NOTIFICATION

Mixing fluids

Risk of damage to components
- → Close off all openings immediately after exposing them (with adhesive tape, suitable stoppers).

Information

Pre-treat corroded components with anti-rust agent or heat.

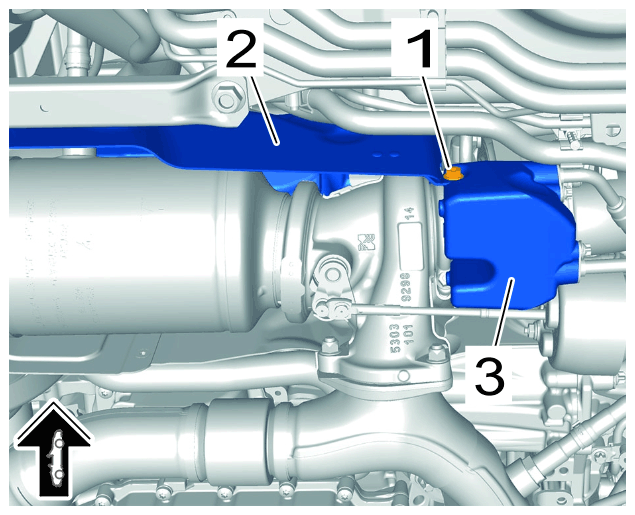

Unscrew screw -1 - on heat shield -2 - for the turbocharger oil tank -3 -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

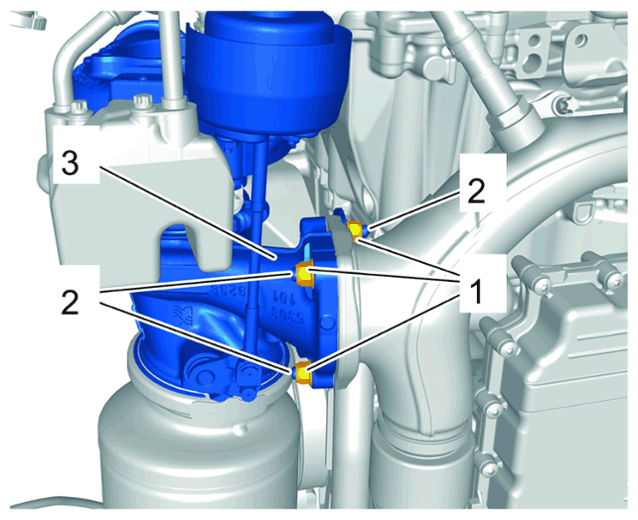

Unscrew nuts -1 - and studs -2 - on the turbocharger/exhaust manifold flange -3 -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

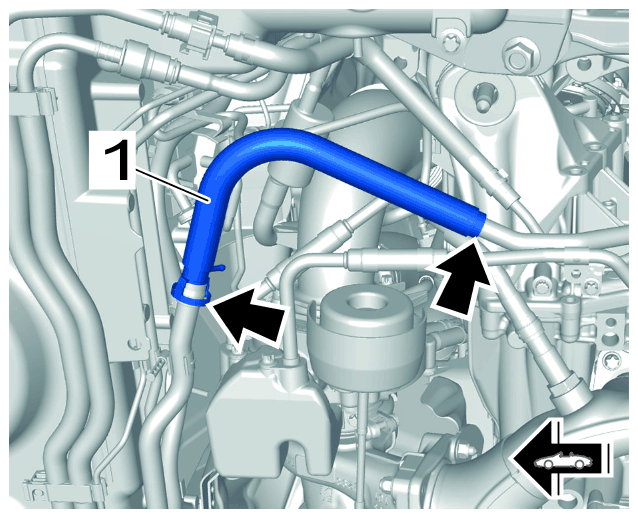

Release vacuum line -1 - for brake booster at the underbody and pull it off.
1. 3.1 Open both connection points -Arrow -.
2. 3.2 Check O-rings and replace them if necessary.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

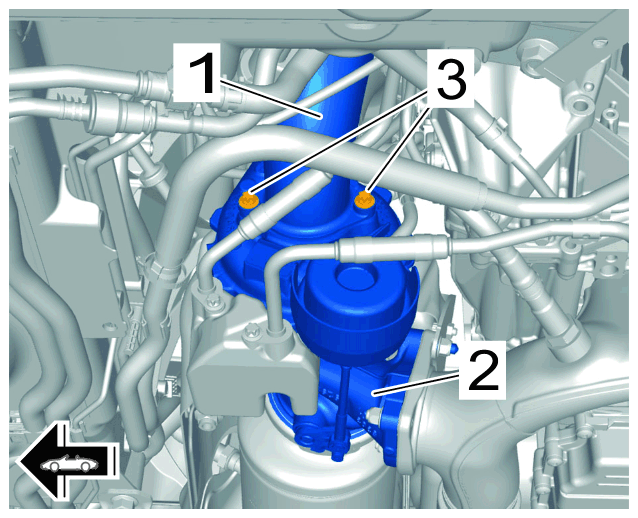

Disconnect intake pipe -1 - on the turbocharger -2 -.
1. 4.1 Unscrew 2 screws -3 -.
2. 4.2 Replace O-ring on the intake pipe.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

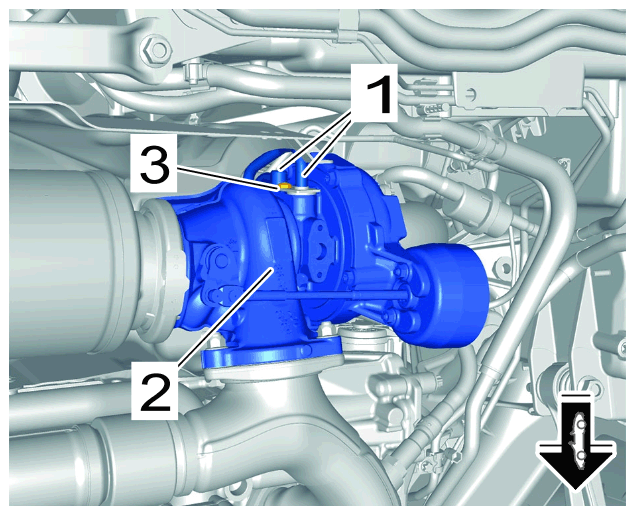

Disconnect coolant lines -1 - on the turbocharger -2 -.
1. 5.1 Unscrew screw -3 -.
2. 5.2 Disconnect coolant lines -1 -.
3. 5.3 Catch escaping coolant.
4. 5.4 Replace all O-rings on the coolant lines.
5. 5.5 Close off openings and connections using suitable stoppers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

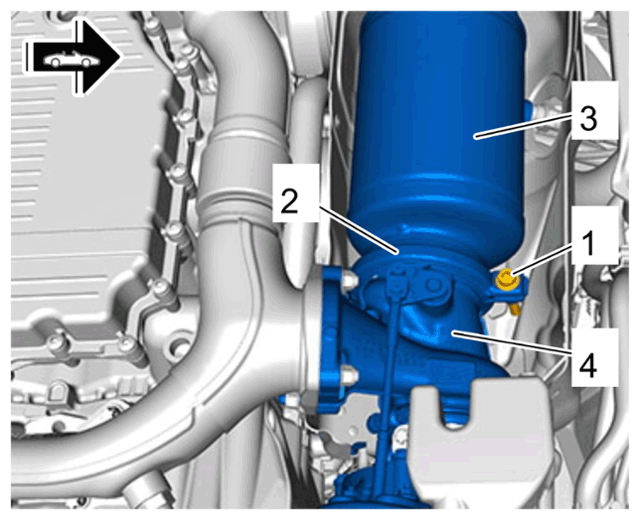

Loosen connecting clip securing -2 - catalytic converter -3 - to turbocharger -4 -.
1. 6.1 Loosen screw -1 - and open connecting clip -2 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

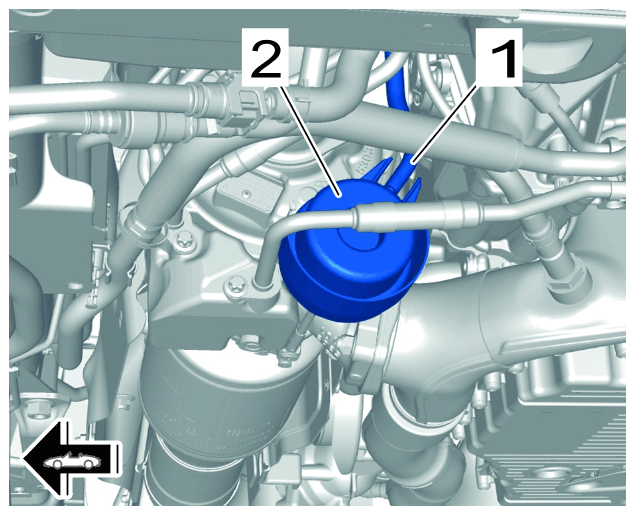

Disconnect vacuum hose -1 - from the vacuum modulator -2 -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vehicle interior

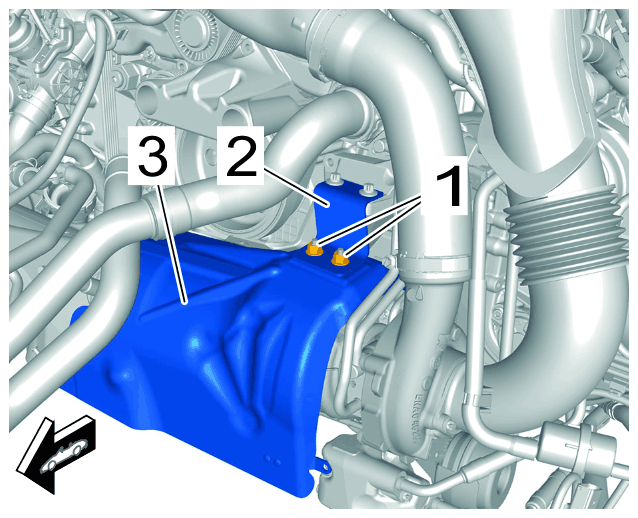

Unscrew screws -1 - securing heat shield -3 - to holder -2 -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

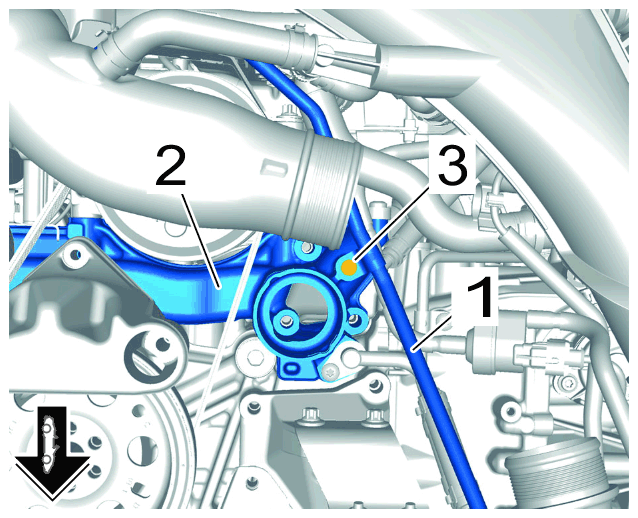

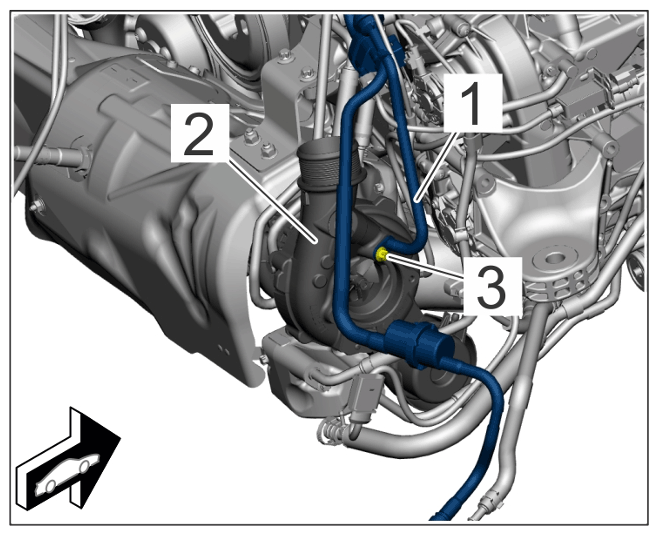

Disconnect turbocharger coolant line -1 - at the coolant distributor housing -2 -.
1. 9.1 Unscrew screw -3 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

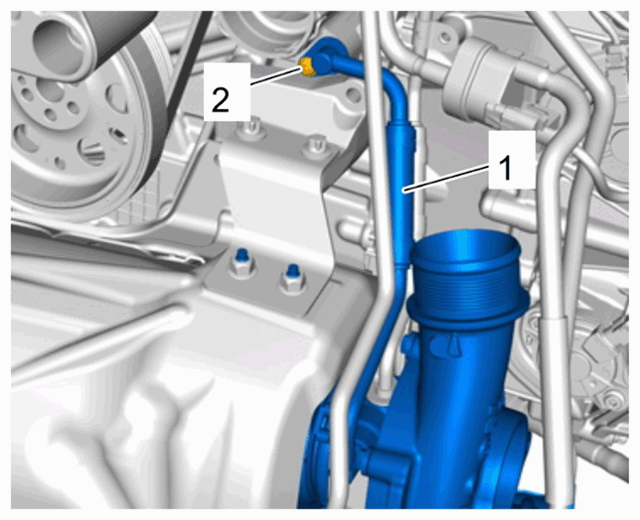

Remove turbocharger coolant line -1 -.
1. 10.1 Unscrew screw -2 - and disconnect coolant line -1 - from the engine.
2. 10.2 Catch escaping coolant.
3. 10.3 Close off openings and connections using suitable stoppers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

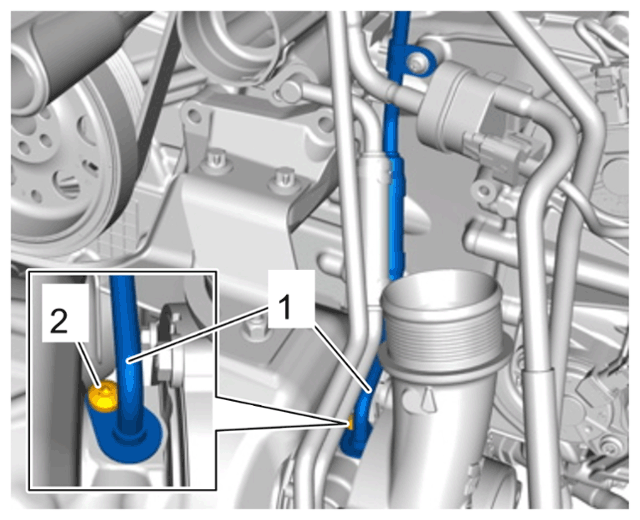

Disconnect oil pipe -1 - at the turbocharger.
1. 11.1 Unscrew screw -2 - using > VAS 6959 - Torx screwdriver insert T30 .
2. 11.2 Carefully disconnect oil pipe -1 - from the turbocharger.
3. 11.3 Collect accumulated engine oil.
4. 11.4 Close off openings and connections using suitable stoppers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

On vehicles with Venturi turbocharger connection:
Disconnect tank vent line -1 - at the -2 - turbocharger.
1. 12.1 Undo screw -3 - and pull tank vent valve -1 - off the turbocharger -2 -.
2. 12.2 Close off openings and connections using suitable stoppers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove turbocharger by pulling it downwards.
1. 13.1 Replace gasket on the exhaust manifold flange.
2. 13.2 Replace gasket on the catalytic converter flange.
