Removing Intake Manifold

Component overview on removed engine:

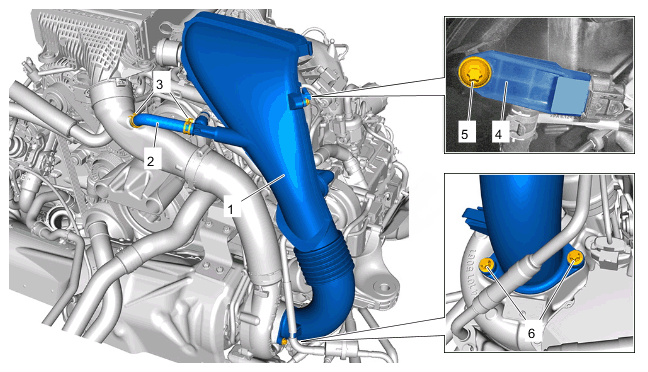

Fig 1: Intake Manifold Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Intake manifold
2. Vent line
3. Spring band clamp
4. Tank ventilation sensor (USA) or dummy
5. Tapping screw (self-tapping)
6. Screws securing intake pipe to turbocharger

1. Disconnect tank ventilation sensor (or dummy) on the intake manifold.
   1. 1.1 Unscrew screw -2  - and leave the sensor -1  - hanging at the side.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

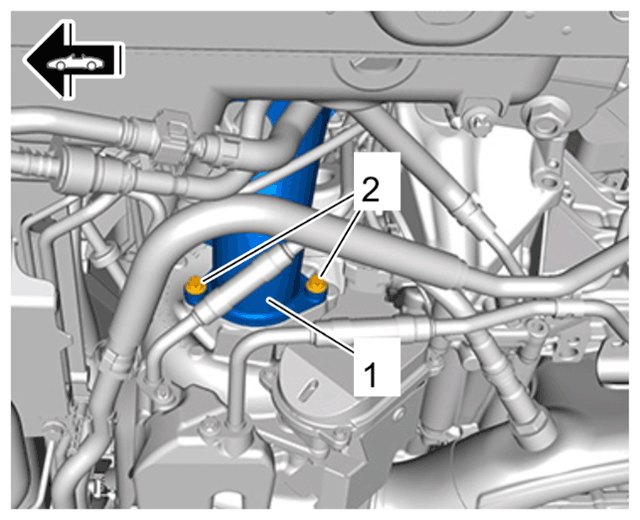

2. Loosen intake manifold at the turbocharger.
   1. 2.1 Unscrew screws -2  - and disconnect intake manifold -1  -.
   2. 2.2 Replace O-ring.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
