Removing Connecting Link For Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew fastening nuts -1 and 2-  on the connecting link -3-  . To loosen fastening nut -2-  , counter at the hexagon -arrow-  .

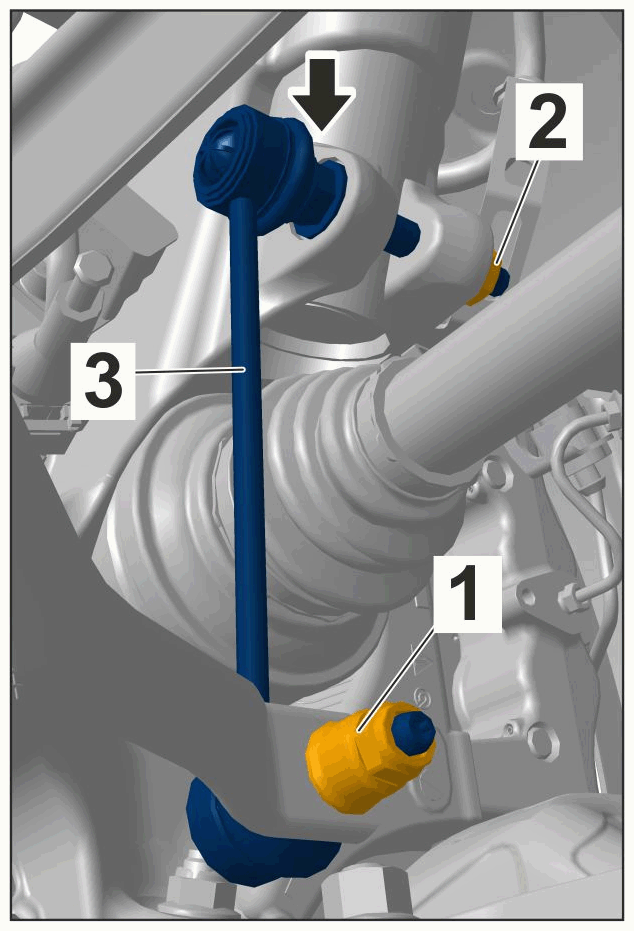

    G14947128Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link

  2. Remove connecting link.
