Installing Connecting Link For Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
  1. Installation is performed in reverse order.
    1. 1.1  Tighten fastening nuts to the specified tightening torque.

      Connecting link to anti-roll bar -1-  : > Initial tightening 40 Nm (29.5 ftlb.)  > Final tightening + 30°

      Connecting link to wheel bearing housing -2-  > Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening + 180°

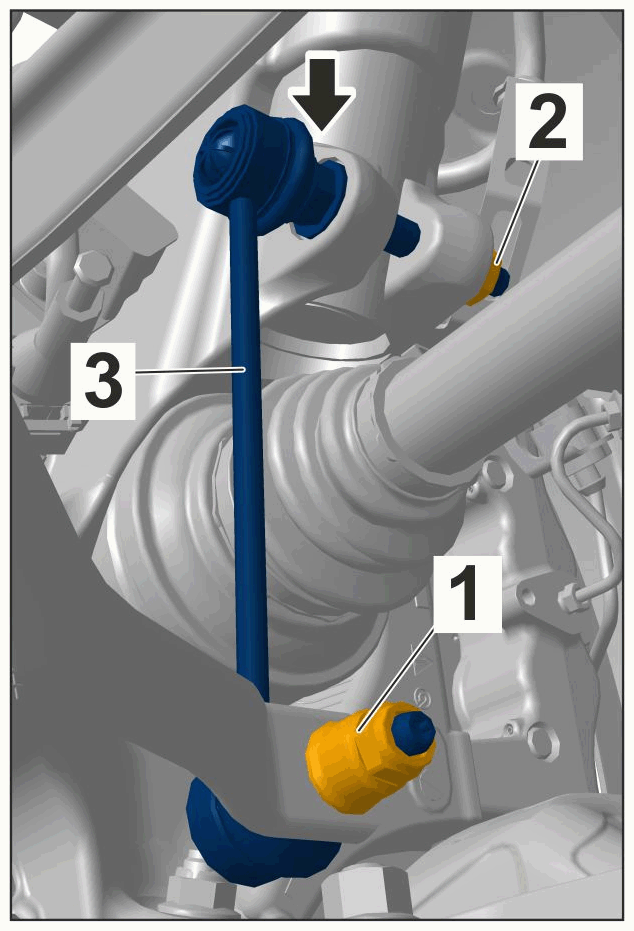

    G14947129Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link
