Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Shock absorber (piston rod) to strut mount (conventional and PASM) | Item 1: Hexagon nut M14 x 1.5 | Tightening torque | 70 Nm (51.6 ftlb.) | + 5 Nm (3.7 ftlb.) | |

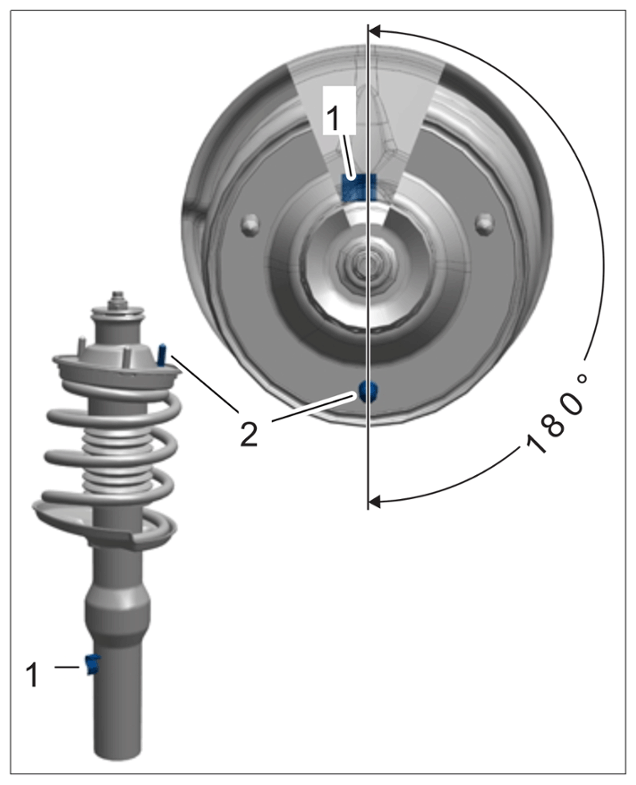

| Alignment of spring-strut mount with respect to position plate on the shock absorber | Angle measured between fastening bolt (on the sloping spring-strut mount part) and position plate on the shock absorber | Angle | 180° |
Positioning spring-strut mount
