Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Loosen axle nut (securing drive shaft to wheel bearing housing). Also apply the brake (2nd mechanic required) while the vehicle is stationary on the ground.
Lift the vehicle.
> 4X00IN LIFTING THE VEHICLE - portion on "Lifting and lowering"
Remove rear wheel.
> 440519 REMOVING AND INSTALLING WHEEL - portion on "Removing"

For vehicles with PCCB brake discs, use assembly aids (two assembly pins).
Remove covers over spring strut,
Boxster: Remove service covers in rear luggage compartment.

> 700619 REMOVING AND INSTALLING TRIM PANEL FOR REAR LUGGAGE COMPARTMENT - portion on "Removing"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

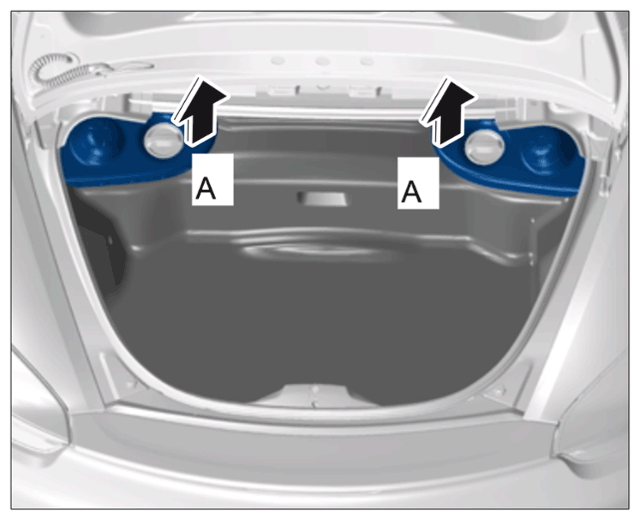

Unclipping service covers

Boxster Spyder: Remove rear luggage-compartment lining.

> 700619 REMOVING AND INSTALLING REAR LUGGAGE COMPARTMENT TRIM PANEL

Cayman: Remove rear covers -1- .

> Refer to Removing and installing rear cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

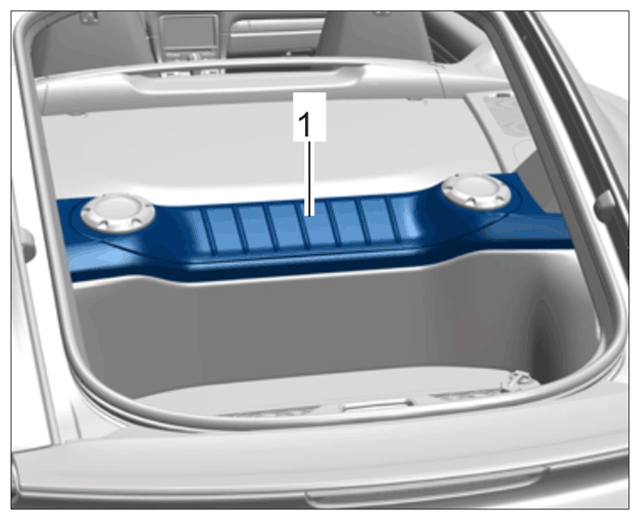

Rear cover

Remove cover over spring-strut mount -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

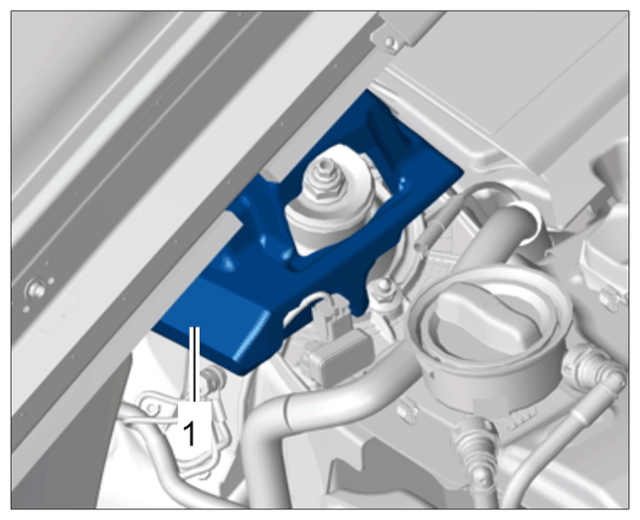

Removing cover over spring-strut mount
