Replacing Diagonal Arm
WARNING: This page is about a different variant/trim than selected.
- Convert control arm spoiler to suit new diagonal arm.
- 1.1

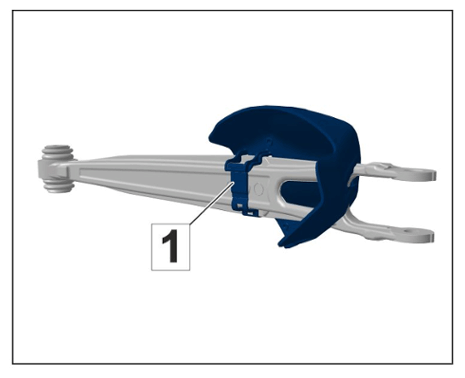

Open retaining clip -1-
and remove control arm spoiler.
Control arm spoiler mounting
Information
Pay particular attention to the following when fitting the control arm spoiler:
- Control arm spoiler must be fitted behind the retaining lugs on the diagonal control arm.
- Retaining clip must engage fully.
- 1.2 Fit control arm spoiler on new diagonal arm.
- 1.1
Open retaining clip -1-
and remove control arm spoiler.
