Removing Diagonal Arm

WARNING: This page is about a different variant/trim than selected.
  1. Loosen diagonal arm at the threaded joints -1 and 2-.

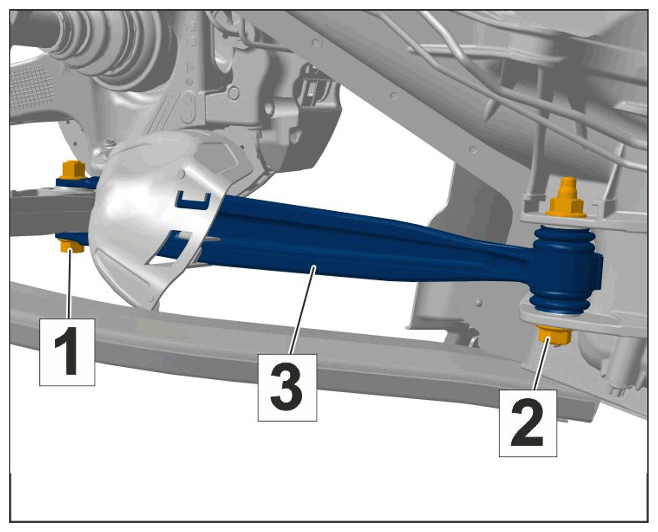

    G14947031Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Diagonal arm mounting

  2. Carefully remove diagonal arm.
