Removing Struts

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

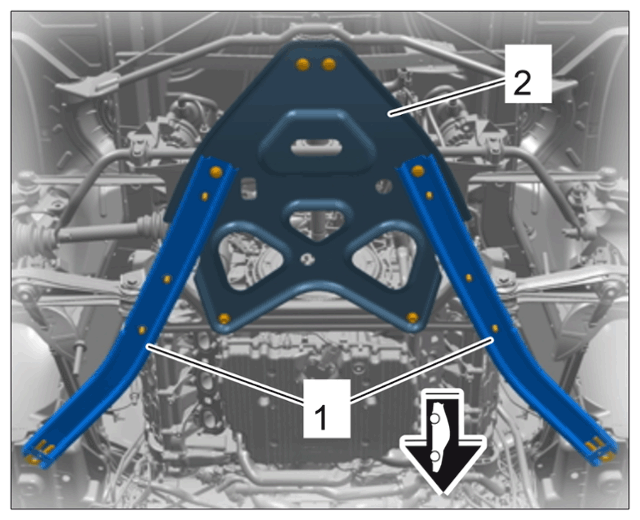

Support plate

Only remove and install the struts and support plate under the following conditions:

• If the support plate -2- was removed or if the threaded joint for the struts on the rear-axle side sections was loosened, suspension alignment is then required.
• All wheels must be raised (freely suspended).
• Always lift the vehicle at the specified jacking points with the lifting platform set up evenly. (Align lifting arms evenly to avoid distortion).
• The vehicle must not be supported by its wheels after removing the struts and support plate.
• If the vehicle has to be supported by its wheels, the components must be re-installed beforehand.

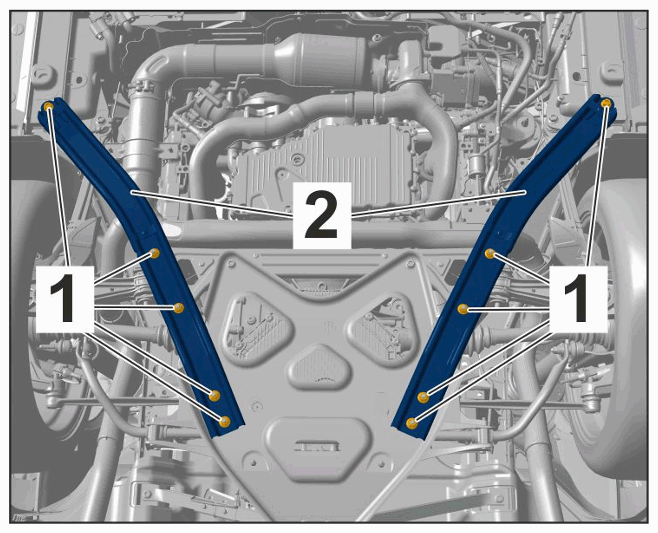

1. Unscrew and remove fastening screws and fastening nuts -1-  on the struts -2-  remove struts.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing struts
