Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Lower trailing arm to rear axle carrier side part (camber eccentric adjuster) | M12x 1.5 | Tightening torque | 110 Nm (81.1 ftlb.) | ||
| Diagonal control arm to trailing arm lower | Hexagon-head bolt, M14x 1.5 x 75 + hexagon nut | Tightening torque | 160 Nm (118 ftlb.) | ||

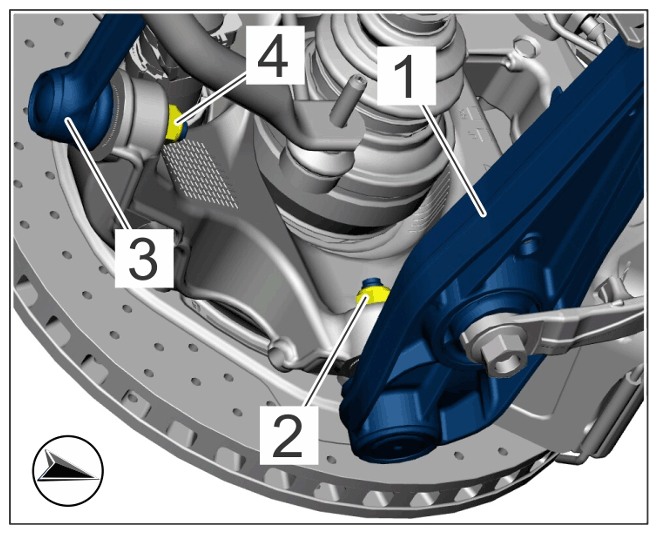

| Lower trailing arm to wheel mount (cone) | Item 2: Lock nut, M12x 1.5 | Tightening torque | 85 Nm (62.7 ftlb.) | ||
|
Lower trailing arm |
|||||
