Installing Lower Trailing Arm

WARNING: This page is about a different variant/trim than selected.
  1. Installation is performed in reverse order to removal.
    1. 1.1  Fit camber eccentric adjuster -3-  at the position marked during removal.
    2. 1.2  Observe specified tightening torques:

      Shear nut M12 lower trailing arm -2-  on wheel bearing housing > Tightening torque 85 Nm (62.7 ftlb.)

      Camber eccentric adjuster threading -3-  : > Tightening torque 110 Nm (81.1 ftlb.)

      Collar nut securing diagonal arm to trailing arm -4-  :> Tightening torque 160 Nm (118 ftlb.)

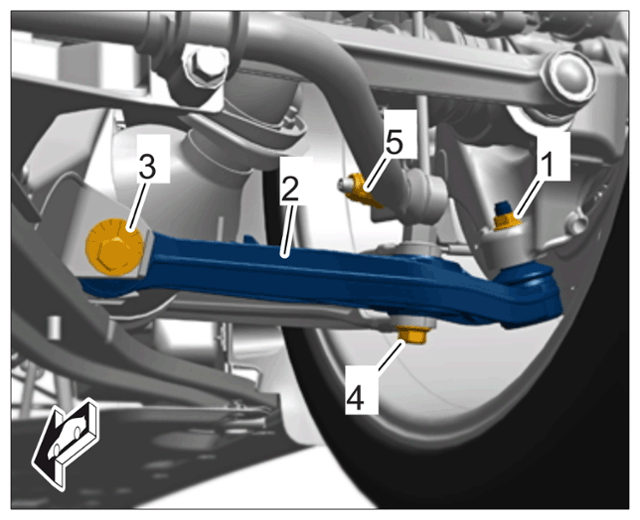

      G14946989Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Securing rear trailing arm
