Installing Rear Tie Rod

Information

• Due to the tightening specifications, the installed hexagon nuts do not necessarily have to be replaced.
• Reuse of components is permitted if they are in good condition.
• Replace damaged or severely corroded hexagon nuts.

1. Fit toe control arm -2-  on rear-axle carrier side section and wheel bearing housing.
2. Fit toe eccentric adjuster -3-  at the position marked during removal and tighten lock nut. > Tightening torque 110 Nm (81.1 ftlb.)  .

   Information

   Following installation, seal the threaded joint securing tie rod to wheel bearing housing with wax as shown in -Illustration-  . Use Pfinder AP14/4 for this (see PIWIS Parts Catalogue - PET)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

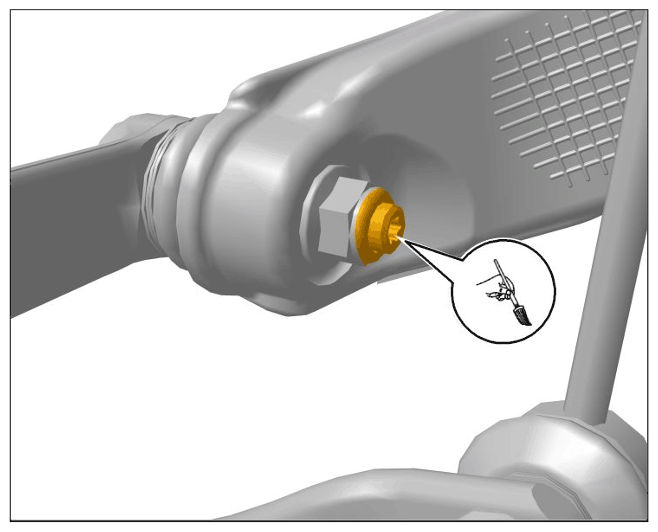

   Applying wax on marked area

3. Tighten hexagon nut on wheel bearing housing > Tightening torque 85 Nm (62, 7 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

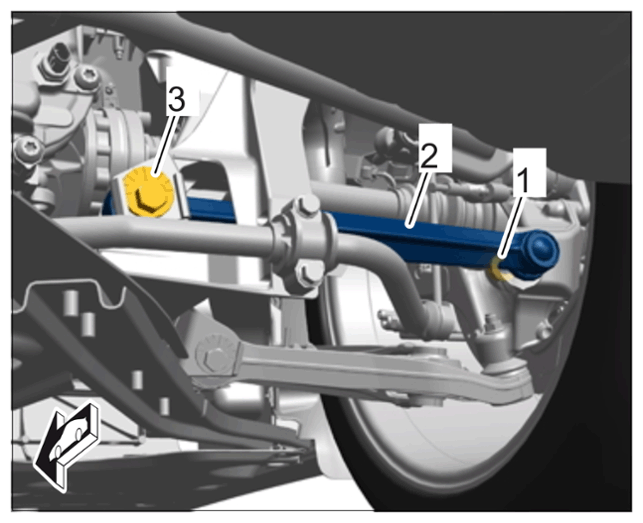

   Securing rear toe control arm
