Removing Oil Separator

WARNING: This page is about a different variant/trim than selected.

Loosen intake manifold at the turbocharger.
1. 1.1 Unscrew fastening screws -2- and pull off intake manifold -1- .
2. 1.2 Replace O-ring.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake manifold on turbocharger

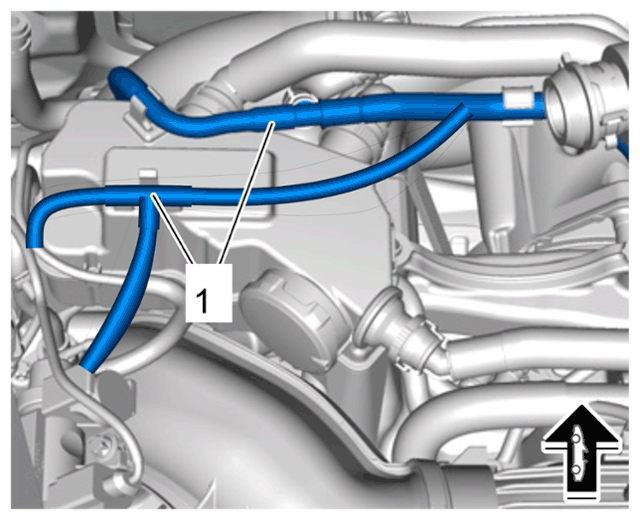

Unclip vacuum lines -1- from the oil separator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping vacuum lines
Unscrew and remove fastening screws -2- on the oil separator -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening oil separator

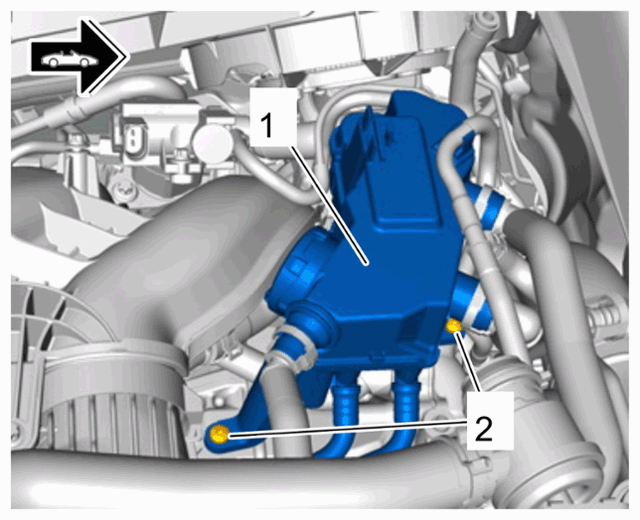

Unscrew and remove fastening screw -2- on the oil separator -1- .
Release plug-in couplings -3, 4 and 5- and pull off vent lines.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening oil separator
Unscrew fastening screws -2- .
Release plug-in coupling -3- and pull off vent line.

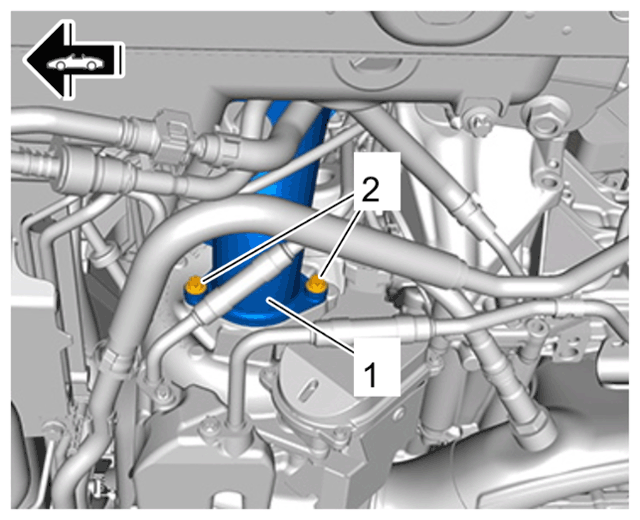

Remove oil separator -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing oil separator
Cover openings.
