Installing Engine Mounting
WARNING: This page is about a different variant/trim than selected.
- Connect vacuum line to the engine mounting.

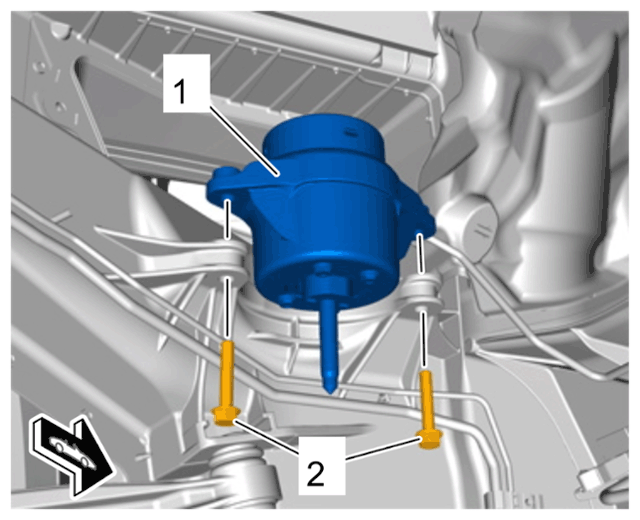

- Position engine mounting -1-
and secure with screws -2-
.
Initial tightening:
> Initial tightening 40 Nm (30 ftlb.)
Final tightening:
> Final tightening torque angle 45 Grad
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Engine mounting on body
