Removing Engine Carrier (Bracket)

Component overview:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

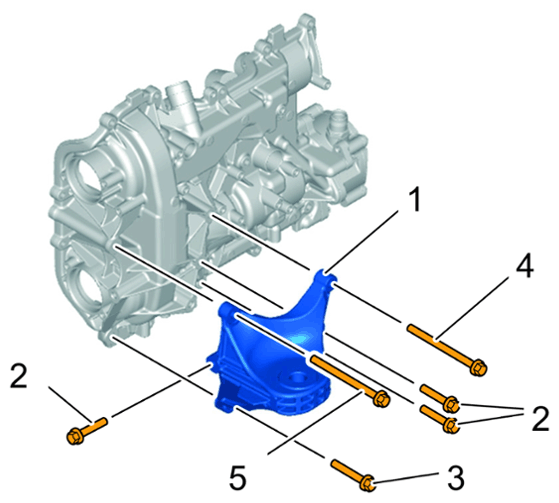

Bracket for engine mounting

1. Bracket for engine mounting
2. Screw, M8 x 35
3. Screw, M8 x 45
4. Screw, M8 x 110
5. Screw, M8 x 125

Information

• When lowering the engine, it must not rest on the rear-axle cross member.
• The exhaust system must not touch against the body or rear apron when lowering it.
• Loosen clamps on the tailpipe cover if necessary and turn tailpipe cover downwards.
• Always be careful of hoses, lines and cables when lowering the system!
• Always avoid collisions!

1. Support the engine at the oil pan using transmission jack and lower it.

   1001IN LOWERING THE ENGINE TO COMPLETE OTHER WORK .

   1. 1.1 Screw off collar nuts -3-  on the engine mount.
   2. 1.2 Lower the engine until the threaded bolts -2-  on the engine mount -1-  are exposed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

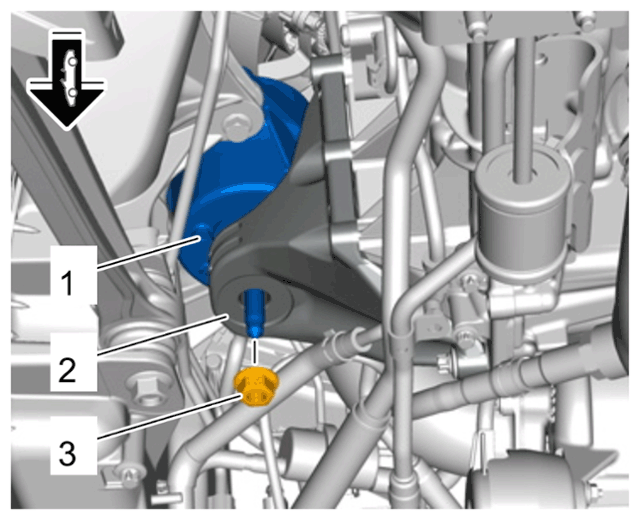

   Engine mount on bracket

2. Remove console.
   1. 2.1 Unscrew screws and remove bracket.
