Installing Engine Carrier (Bracket)

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
- → Secure components to prevent them from falling down.

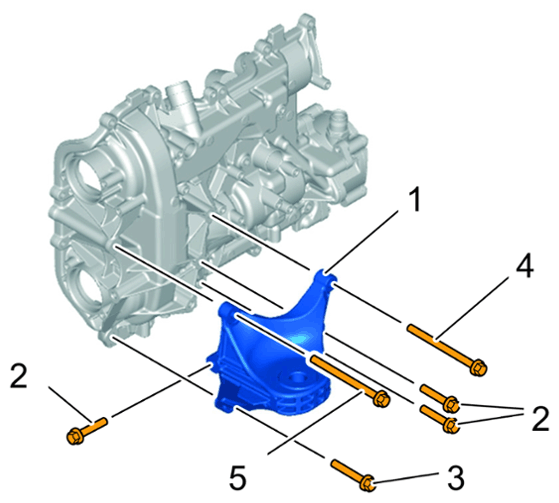

Component overview:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for engine mounting

Install console.
1. 1.1 Position bracket and secure with screws.
  Screw, M8 x 125: > Tightening torque 33 Nm (24 ftlb.)

  Screw, M8 x 110: > Tightening torque 33 Nm (24 ftlb.)

  Screw, M8 x 45: > Tightening torque 33 Nm (24 ftlb.)

  Screw, M8 x 35: > Tightening torque 33 Nm (24 ftlb.)
Raise the engine into installation position and tighten collar nuts on engine mount.
Initial tightening for M12 collar nut: > Initial tightening 40 Nm (30 ftlb.)

Final tightening: > Final tightening torque angle 90°
