Removing Front Right Coolant Pipe

WARNING: This page is about a different variant/trim than selected.

WARNING: Caustic fluids

Danger of chemical burns
- → Wear personal protective gear.
- → Ensure that there is good ventilation.
- → Avoid contact with caustic fluid.
- → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Release coolant connection -1- and pull coolant hose off the front right coolant pipe -2- .
Unscrew and remove fastening screw -3- .
Release coolant connections -4 and 5- and pull coolant hoses off the front right coolant pipe -2- .
Unclip front right coolant pipe -2- from holders -6 and 7- and guide it out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

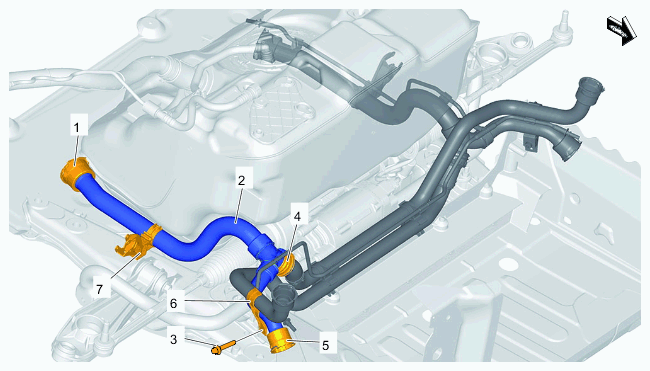

Front right coolant pipe
