Removing Coolant Pipe
WARNING: This page is about a different variant/trim than selected.

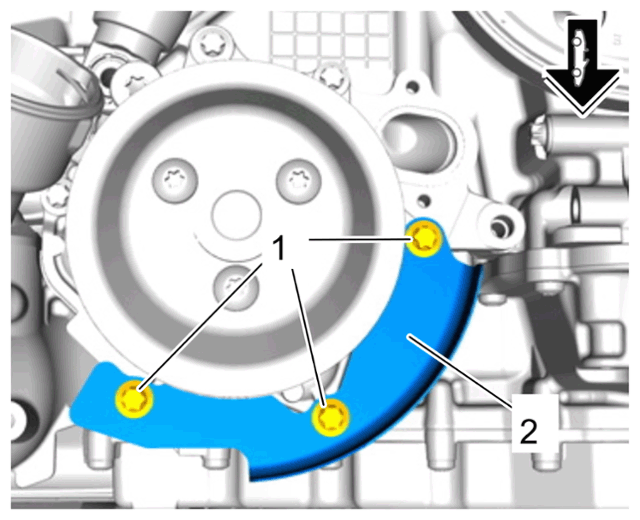

- Remove heat shield on coolant pump.
- 1.1 Unscrew screws -1-
and remove heat shield -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Heat shield

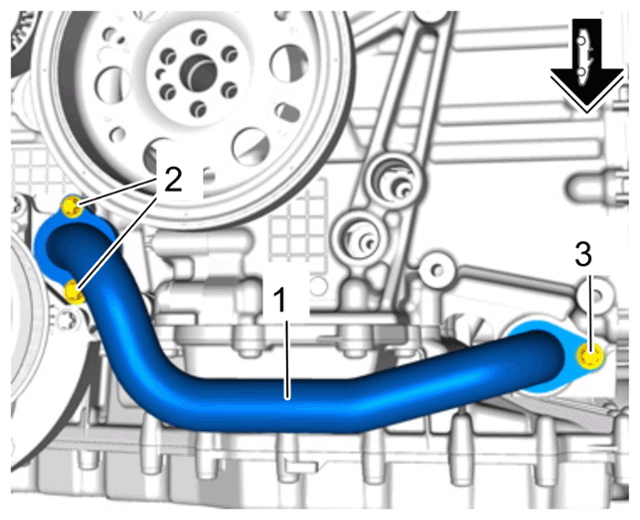

- Remove coolant pipe.
- 2.1 Unscrew screws -2 and 3-
.
- 2.2 Remove coolant pipe -1-
.
- 2.3 Replace O-rings!
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant pipe on coolant pump
