Replacing Coolant Distributor Housing
WARNING: This page is about a different variant/trim than selected.

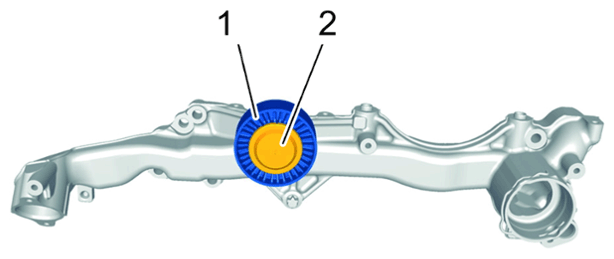

- Convert deflection roller -1-
.
- 1.1 Unclip cap -2-
.
- 1.2 Unscrew fastening screw underneath and remove deflection roller -1-
.
- 1.3 Position deflection roller -1-
on the new distributor housing and secure it. > Tightening torque 45 Nm (33 ftlb.)
- 1.4 Clip in cap -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant distributor housing
