Removing Pulley

Information

If the loosening forces for the fastening screws are so high that the pulley turns completely while loosening it, the drive belt preload must be increased. This can be done by pressing the drive belt together above the pulley, for example.

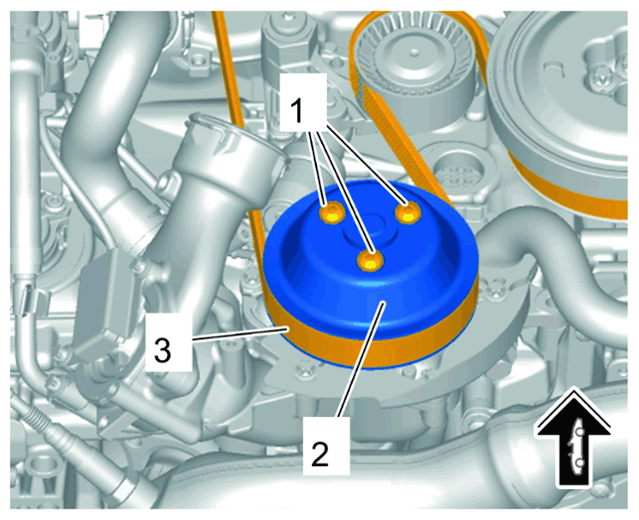

1. Loosen fastening screws -1-  .
2. Loosen the drive belt -3-  and remove it from the pulley -2-  .

   > 137819 REMOVING AND INSTALLING DRIVE BELT

3. Unscrew fastening screws -1-  .
4. Remove pulley -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pulley
