Removing And Installing Additional Coolant Pump

WARNING: This page is about a different variant/trim than selected.
  1. Remove additional coolant pump.
    1. 1.1 Loosen clamps -1-  and pull off coolant hoses -2-  .
    2. 1.2 Release and disconnect cable plug -3-  .
    3. 1.3 Unscrew screw -4-  and remove additional coolant pump -5-  .

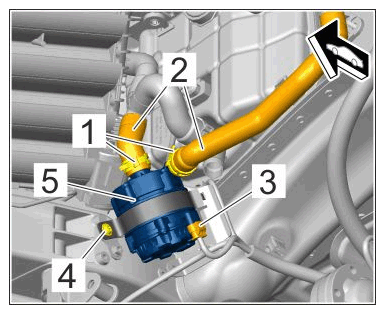

    G14944181Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Additional coolant pump

  2. Installation is performed in reverse order.
    1. 2.1 Tighten screw on additional coolant pump to > Tightening torque 8 Nm (6 ftlb.)  .
