Preliminary Work

WARNING: This page is about a different variant/trim than selected.

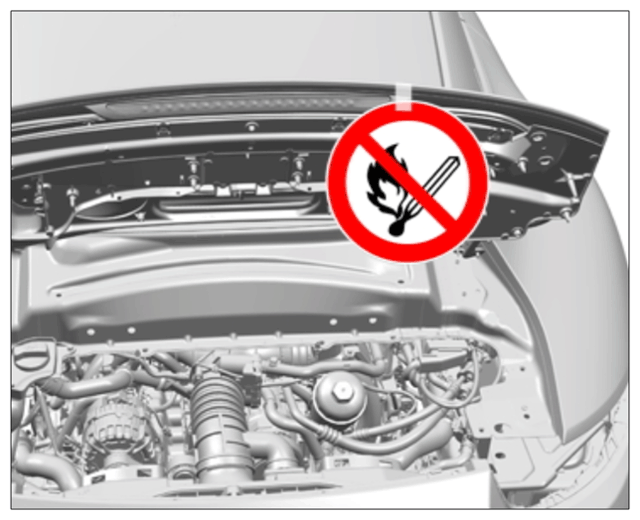

Place a warning sign in a clearly visible position in the work area or on the vehicle > Example of a warning sign .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Relieve fuel pressure in the system.

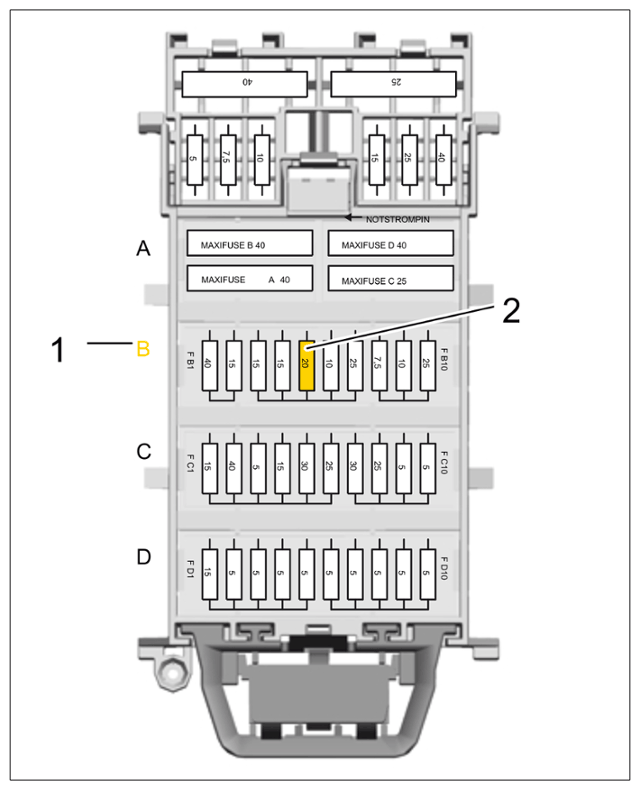

1. 2.1 Remove cover on the fuse carrier in the passenger compartment at the front left.
2. 2.2 In row B -1 -, pull out the (20-amp) fuse -2 - for the fuel pump.
3. 2.3 Start the engine, wait until it cuts out and then re-insert the fuse.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove air cleaner housing.
> 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - portion on "Removing".
