Removing Centre Intake-Air Distributor

WARNING: This page is about a different variant/trim than selected.

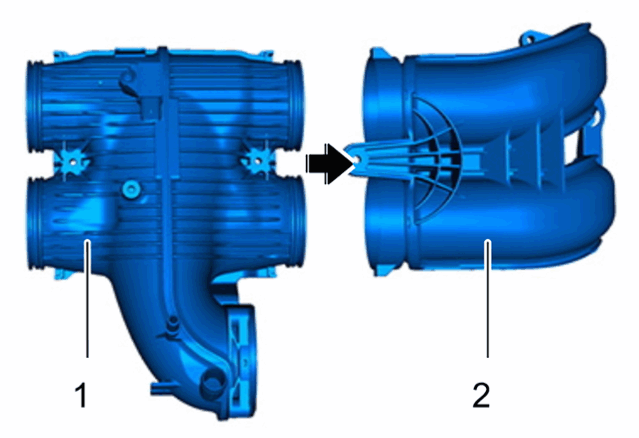

  1. Pull right section -2  - off the centre intake-air distributor -1  - (-arrow  -).
  2. Replace seals.
    G14945260Courtesy of PORSCHE CARS NORTH AMERICA, INC.
