Component Information

WARNING: This page is about a different variant/trim than selected.

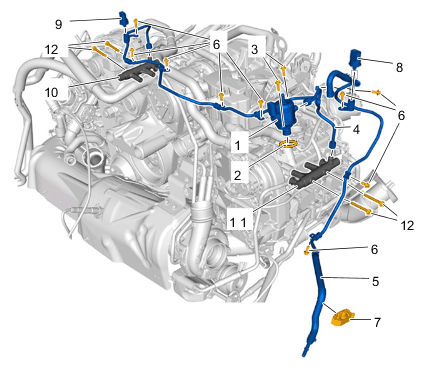

Fig 1: Fuel System On Engine Components Location
G14945227Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. High-pressure pump
  2. O-ring
  3. Screw, M6 x 20 for high-pressure pump
  4. High-pressure fuel connecting line with union nuts - coat thread and cone with Microgleit DF977S
  5. Low-pressure fuel line
  6. Screw, M6 x 16 - fuel line holder
  7. Clip for fuel line and vent line
  8. High-pressure sensor - coat thread with Microgleit DF 977S
  9. Low-pressure sensor - coat thread with Microgleit DF 977S
  10. Fuel collection pipe, bank 1-2
  11. Fuel collection pipe, bank 3-4
  12. Screw, M6 x 85, for fuel collection pipe - replace screws!
