Installing Air Cleaner Housing
WARNING: This page is about a different variant/trim than selected.

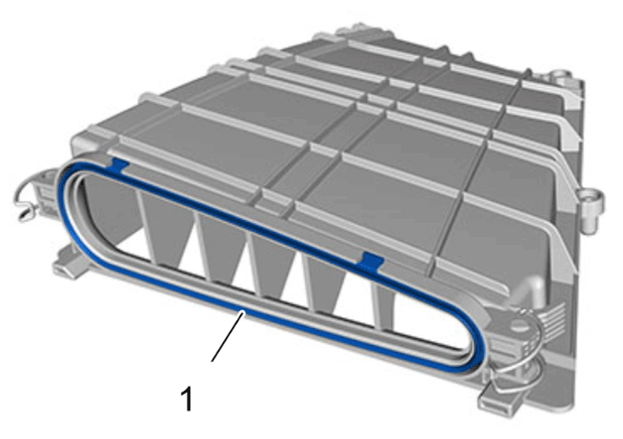

- Check the condition of the seal -1
- and replace it if necessary.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

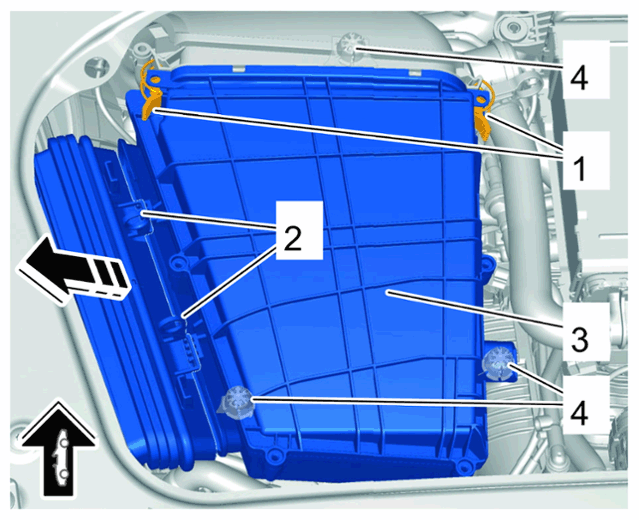

- Install air cleaner housing.
- 2.1 Insert air cleaner housing -3
-, making sure that the housing engages in the ball joints -4
-.
- 2.2 Push the air guide apart and engage retaining clips -2
-.
- 2.3 Lock quick-connecting locks -1 -
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
