Removing Air-Cleaner Element
WARNING: This page is about a different variant/trim than selected.

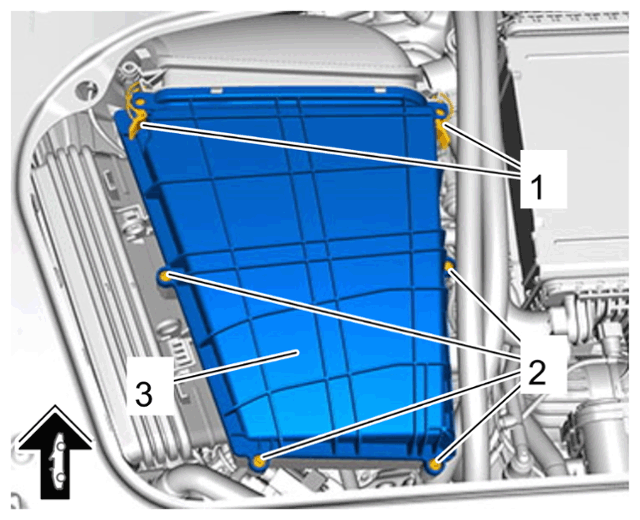

- Remove upper part of air cleaner.
- 1.1 Release quick-connecting locks -1
-.
- 1.2 Unscrew screws -2
-.
- 1.3 Remove upper part of air cleaner -3
-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Remove air-cleaner element.
- Check lower part of air cleaner and air guide for soiling and clean it using a vacuum cleaner if necessary.
