Removing Oil Pan

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  • → Protect components from dirt and contamination.
  • → Clean or replace dirty components.

1. Remove oil pan.
   1. 1.1 Unscrew internal Torx screws (M6 x 25) -1 to 23-  .

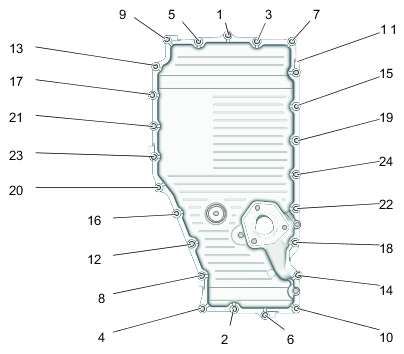

   Fig 1: Lower Part Of Oil Pan To Upper Part Of Oil Pan Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence for securing lower part of oil pan to upper part of oil pan

2. Remove the oil pan.
   1. 2.1 Check moulded seal and replace it if necessary.
   2. 2.2 Replace O-ring on the support dome.
3. Clean and degrease sealing faces (using solvent naphtha or metal cleaner for example). Allow parts to dry off well.
