Preliminary Work

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
- → Let the fluid cool down.
- → Wear personal protective gear.

Drain engine oil.
> 170117 CHANGING ENGINE OIL AND OIL FILTER .

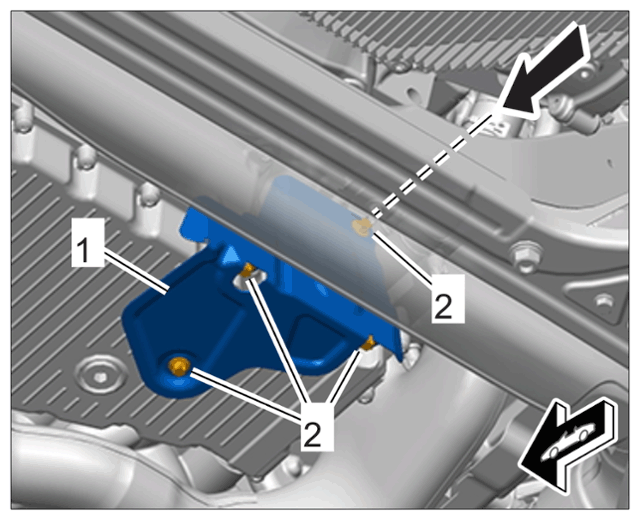

Remove heat shield -1- .
1. 2.1 Unscrew screws -2- and remove heat shield.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on lower part of oil pan

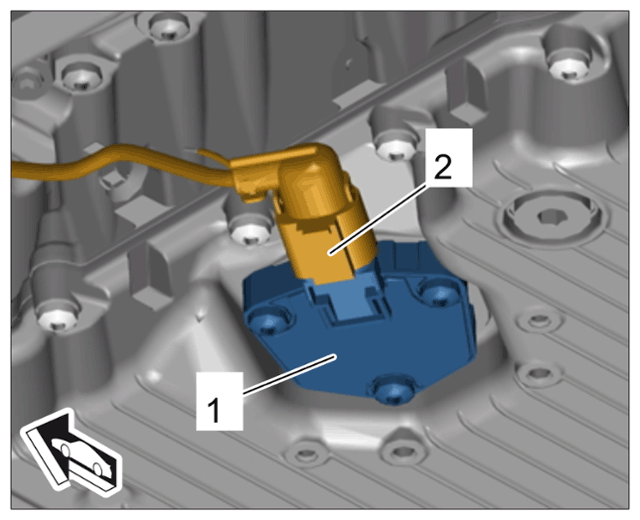

Release and pull off cable plug -2- for oil level sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection for oil level sensor
Remove oil-level sender if necessary.
> 170919 REMOVING AND INSTALLING OIL-LEVEL SENDER .
