Installing Oil-Level Sender

NOTIFICATION

Incorrect oil level

• Risk of damage to engine or catalytic converter
  • → Check the oil level regularly.
  • → The oil level must not fall below the Minimum marking or rise above the Maximum marking.
  • → Only use engine oil approved by Porsche.

1. Fit a new sealing ring -2-  on the oil-level sender -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

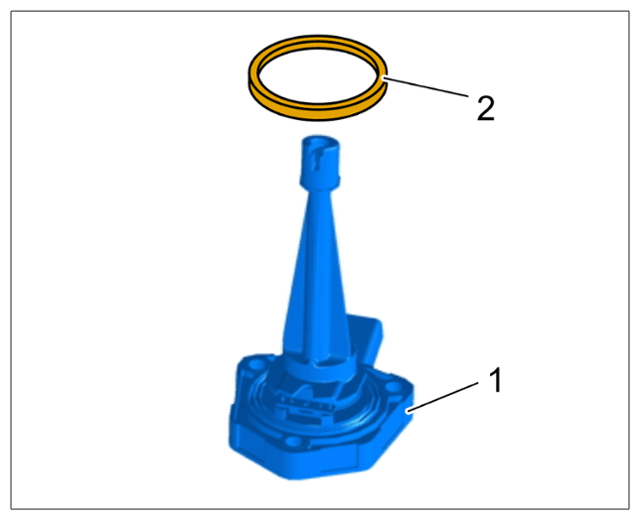

   Sealing ring on oil-level sender

2. Further installation is performed in reverse order to removal.

   Fastening screws for oil-level sender > Tightening torque 10 Nm (7.5 ftlb.)  .

   Fastening screw for heat shield > Tightening torque 10 Nm (7.5 ftlb.)  .
