Removing Spoiler Drive

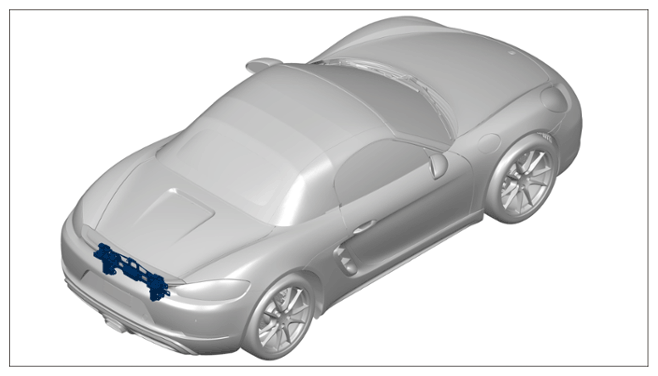

G14954554Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release and disconnect plug connection -1-  .

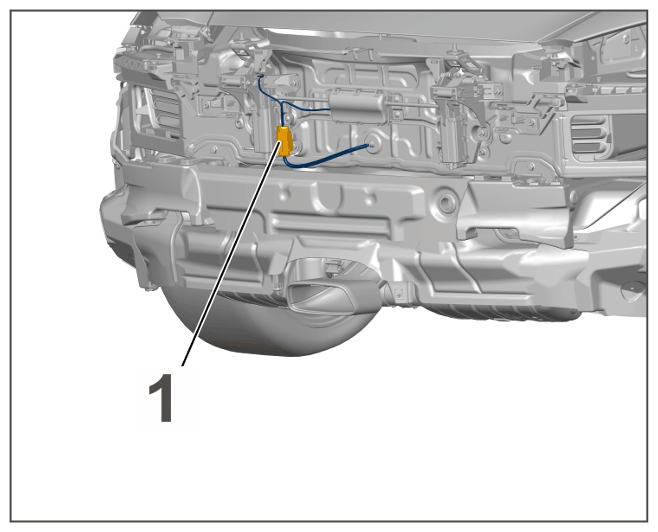

    G14954555Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening nuts -1-  .

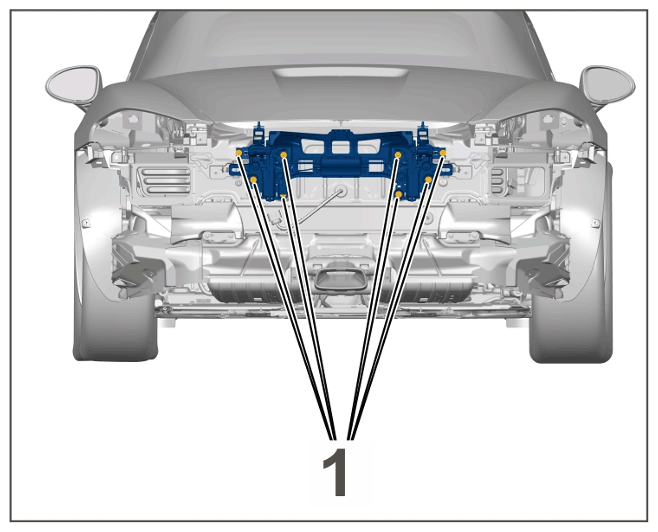

    G14954556Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove spoiler drive.

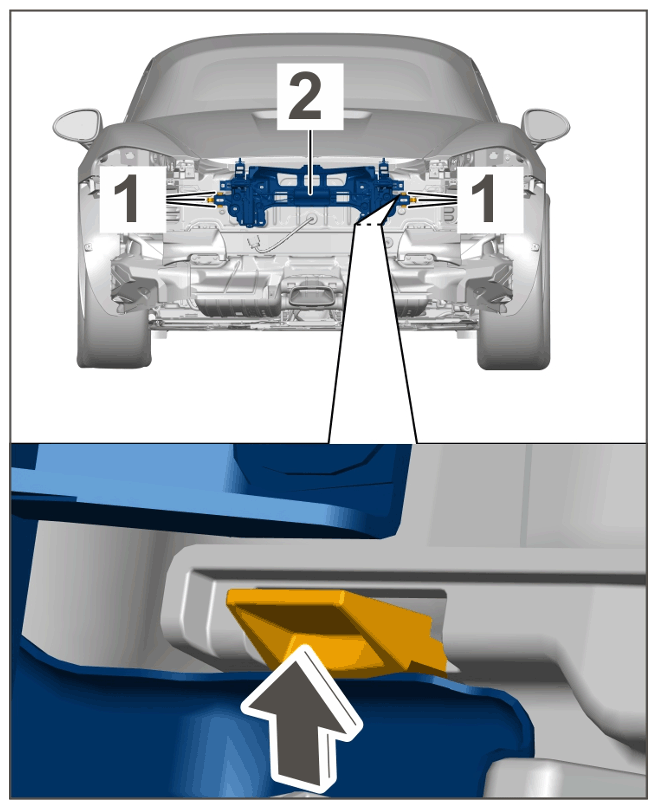

G14954557Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 3.1 Unclip fixing clips -1-  (-arrow-  ).
  2. 3.2 Pull off spoiler drive -2-  .
