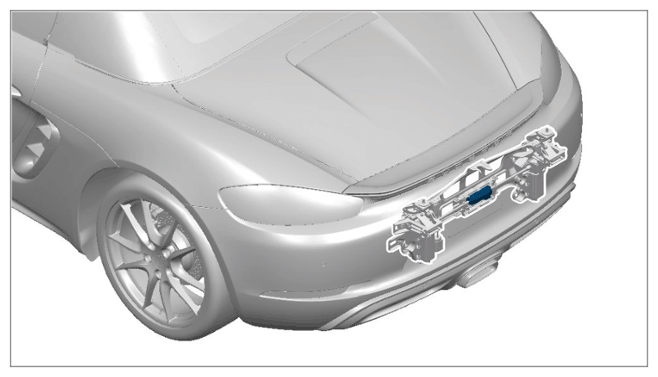

Removing Rear Spoiler Motor

Information

• The drive shafts cannot be replaced individually and remain on the drive unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Open the motor housing.

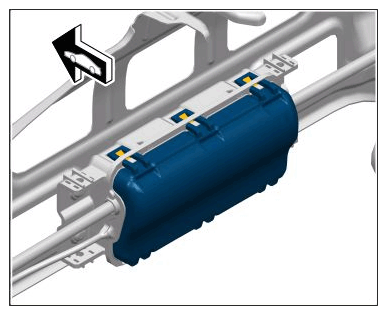

   1. 1.1 Release clip connection at the top and bottom.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   2. 1.2 Remove cover without seal.
2. Loosen motor.

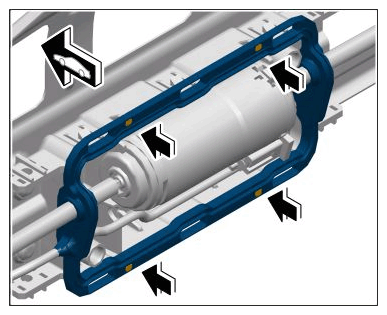

   1. 2.1 Detach seal at the positioning pins.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

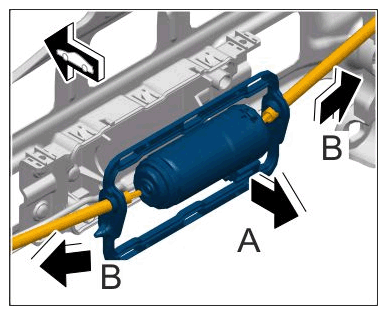

   2. 2.2 Lift motor with drive shafts out of the housing -arrow A-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   3. 2.3 Carefully pull off drive shafts on the motor -arrows B-  .
3. Disconnect wire harness.

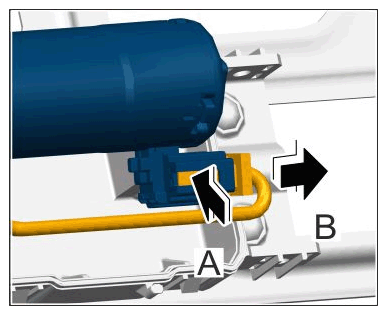

   1. 3.1 Release plug connection on the motor -arrow A-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   2. 3.2 Pull off connector -arrow B-  .
4. Remove motor.
