Removing Rear Spoiler

Information

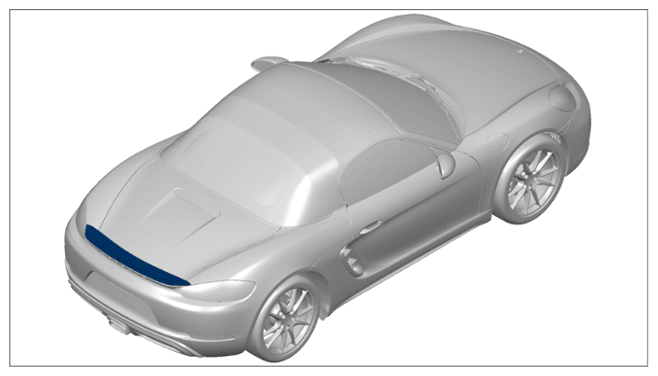

The installation position diagram shows the component on the Boxster as an example. The component and mounting concept are identical for the Cayman.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Extend rear spoiler.
2. Open the rear lid.
3. Remove upper part of rear spoiler.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

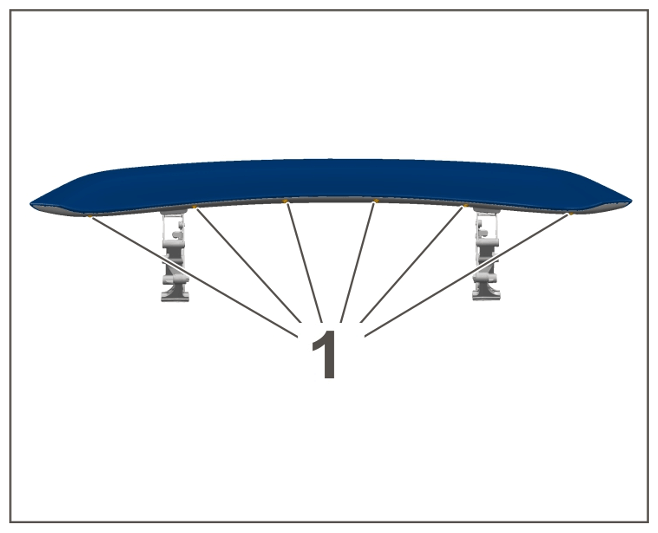

   1. 3.1 Unscrew fastening screws -1-  .
   2. 3.2 Remove upper part of rear spoiler.
4. Remove lower part of rear spoiler.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

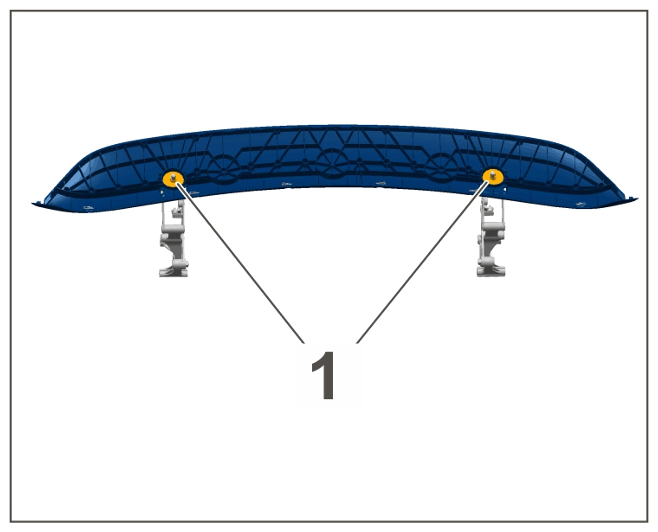

1. 4.1 Mark position of fastening nuts -1-  .
2. 4.2 Unscrew fastening nuts -1-  .
3. 4.3 Remove lower part of rear spoiler.
