Installing Rear Spoiler

  1. Position lower part of rear spoiler according to the markings and tighten fastening nuts -1-  hand-tight.
    G14954537Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert upper part of rear spoiler and adjust gap dimensions.
  3. Tighten fastening nuts -1-  to > Tightening torque 15 Nm (11 ftlb.) +/- 10 %  .

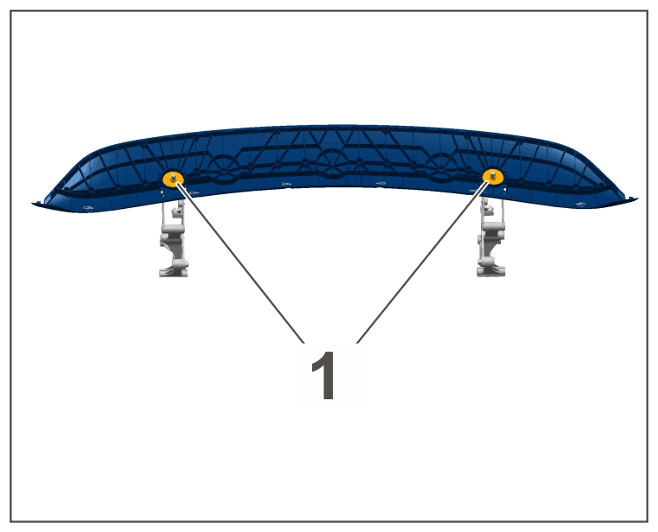

    G14954538Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install upper part of rear spoiler.

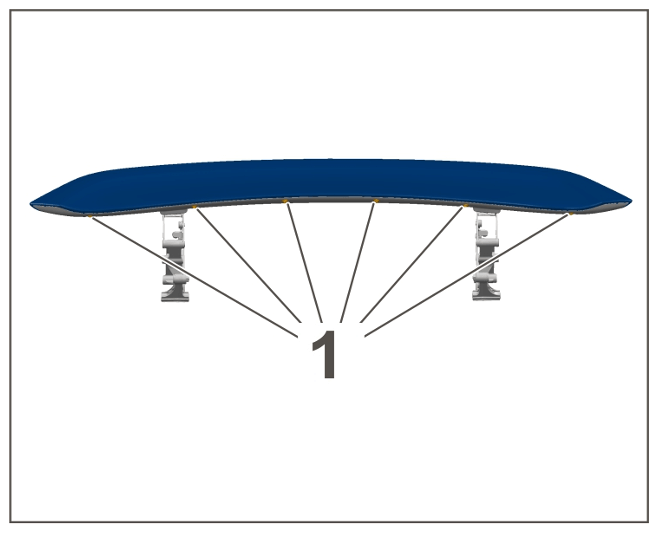

G14954539Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 4.1 Extend rear spoiler.
  2. 4.2 Open the rear lid.
  3. 4.3 Insert upper part of rear spoiler.
  4. 4.4 Screw in and tighten fastening screws -1-  to > Tightening torque 2.2 Nm (1.5 ftlb.)  .
