Removing And Installing Side Air Intake Frame

Information

Shown on driver's side; the steps are identical for the passenger's side.

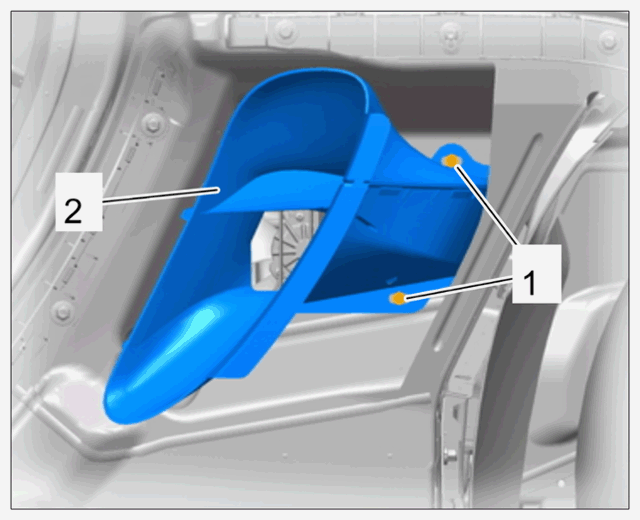

1. Unscrew nuts -1-  .
2. Remove air intake frame -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Installation is performed in reverse order.
