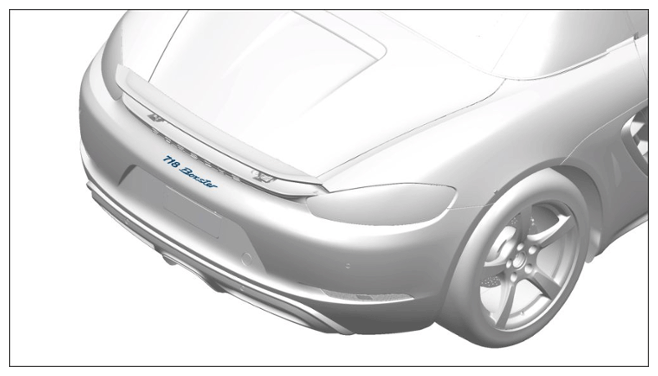

Removing Rear Logo

G14954518Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Not for PORSCHE logo.

The logo is replaced together with the trim.

Information

Logos cannot be re-used.

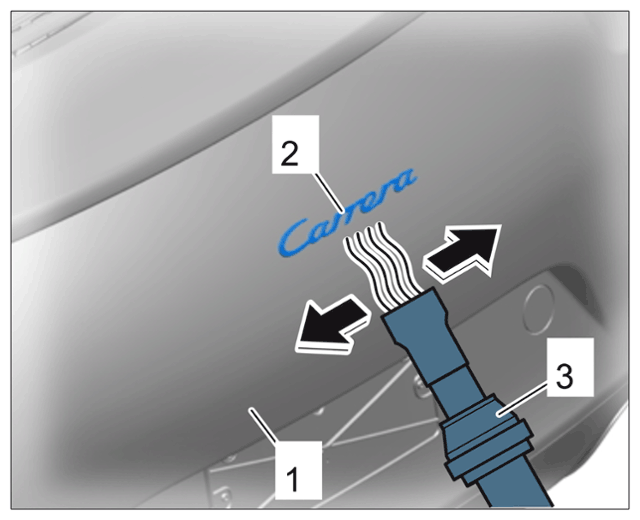

  1. Heat the area -1-  around the logo -2-  using the > V.A.G 1416 - Hot-Air Blower-3-  .
    G14954519Courtesy of PORSCHE CARS NORTH AMERICA, INC.

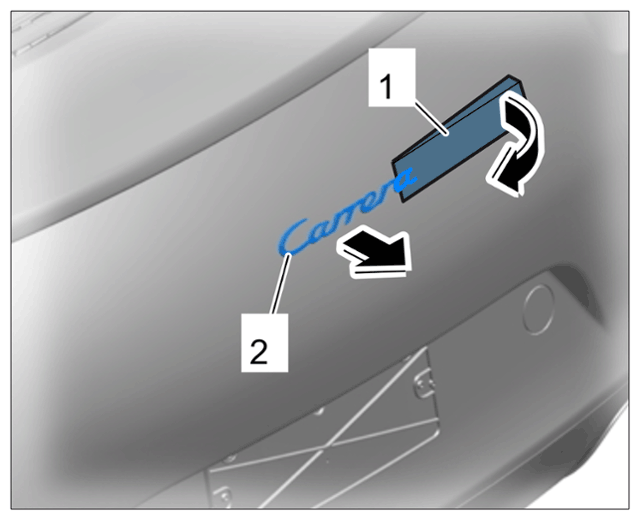

  2. Prise off the logo using a plastic spatula.
    G14954520Courtesy of PORSCHE CARS NORTH AMERICA, INC.

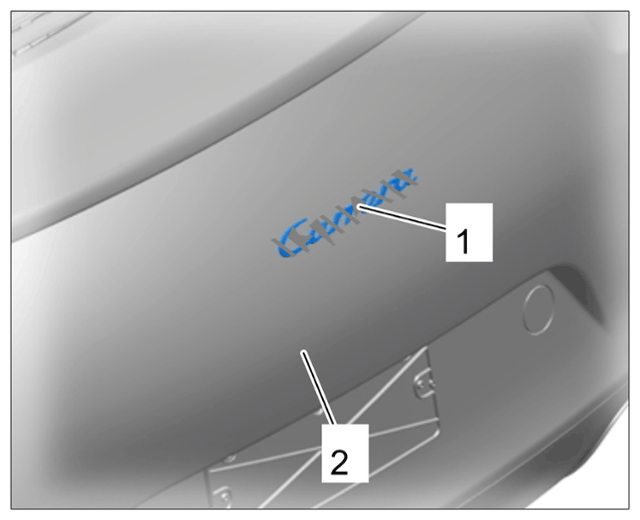

  3. Remove residual adhesive -1-  around the logo -2-  using silicone remover.
G14954521Courtesy of PORSCHE CARS NORTH AMERICA, INC.
