Removing And Installing Radiator Grille

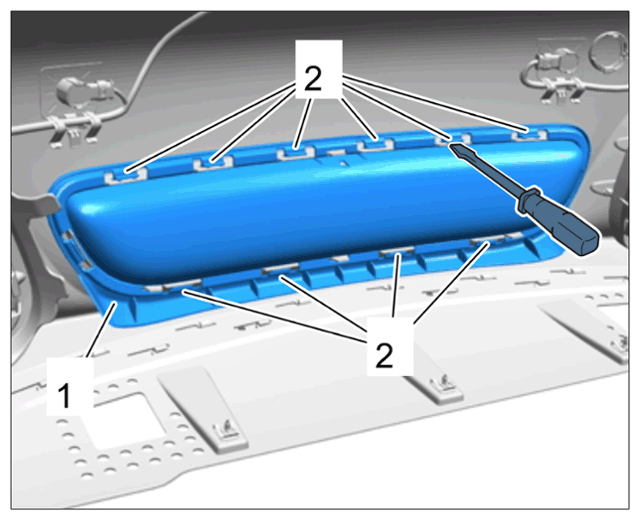

  1. Unclip radiator grille -1-  from the locking lugs -2-  all the way around and remove it.
    G14954483Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Installation is performed in reverse order.
