Technical Values

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

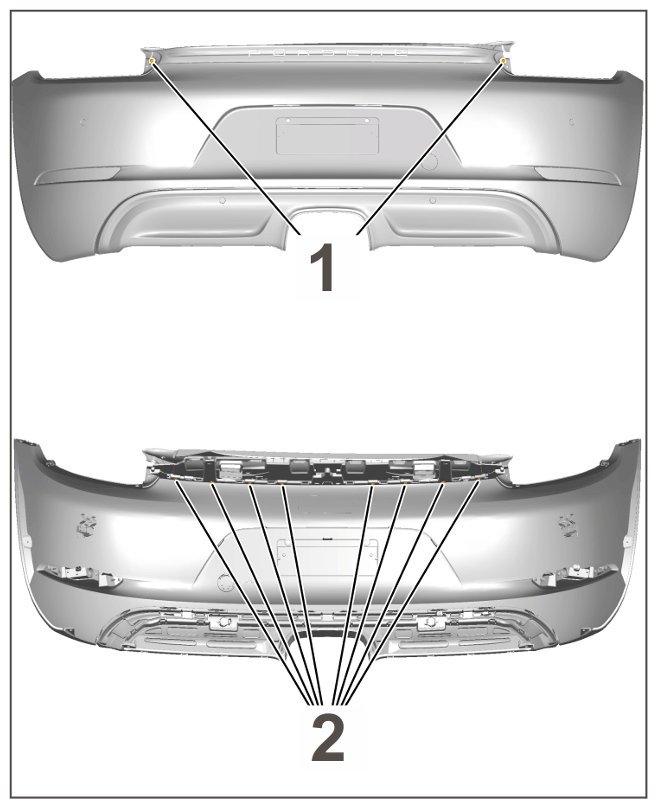

Fastening screws on the trim element (logo)	Item 1	Tightening torque	2.4 Nm (1.8 ftlb.)	+ 10 %	+/- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screw for cover	Item 2	Tightening torque	2.4 Nm (1.8 ftlb.)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

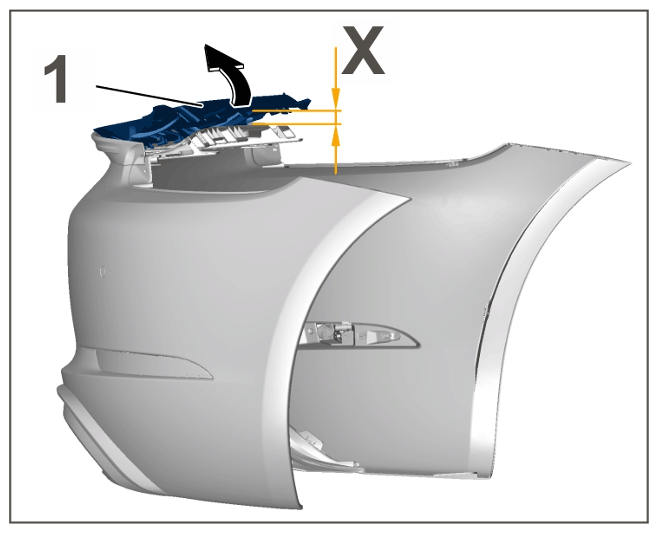

Distance from cover to rear bumper	Item X	Length	5 cm	+/- 1 cm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover
