Disassembling Rear Apron

  1. Unclip cover for towing lug.

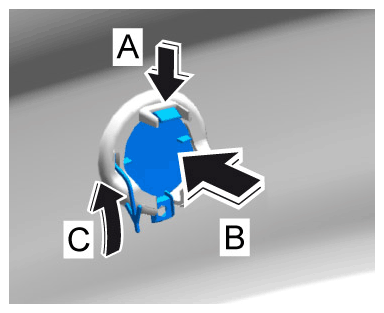

G14954368Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1.1 Release locking lug -arrow "A"-  .
  2. 1.2 Press out the cover -arrow "B"-  .
  3. 1.3 Unhook safety strap -arrow "C"-  .
