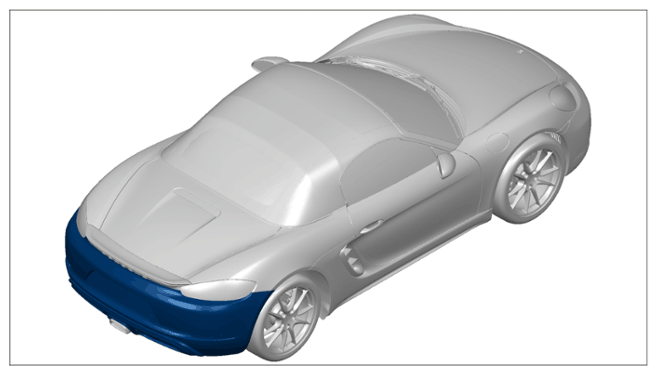

Removing Rear Apron

G14954361Courtesy of PORSCHE CARS NORTH AMERICA, INC.

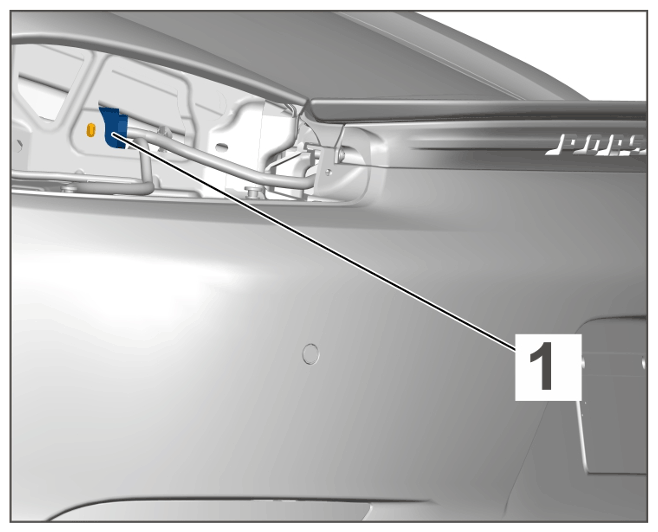

  1. Disconnect wiring harness for ParkAssist -1-  .
    G14954362Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1 Unclip plug connection for ParkAssist.
    2. 1.2 Release and disconnect plug connection for ParkAssist.

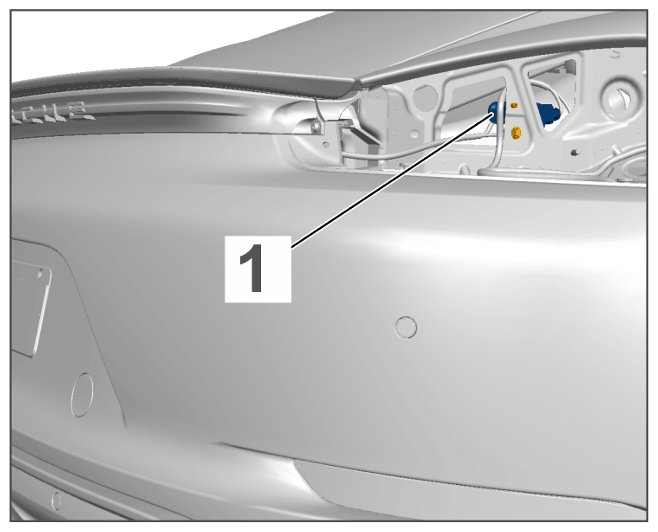

  2. Disconnect wiring harness for reversing camera -1-  .
    G14954363Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1 Unclip plug connection for reversing camera.
    2. 2.2 Release and disconnect plug connection for reversing camera.

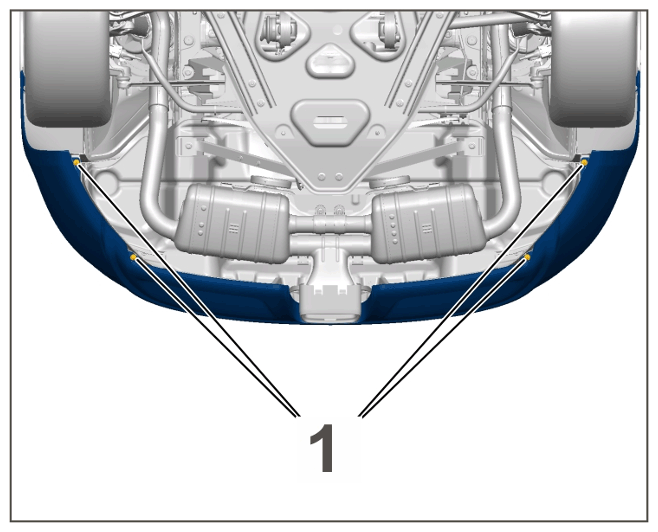

  3. Unscrew fastening screws at the bottom -1-  .
    G14954364Courtesy of PORSCHE CARS NORTH AMERICA, INC.

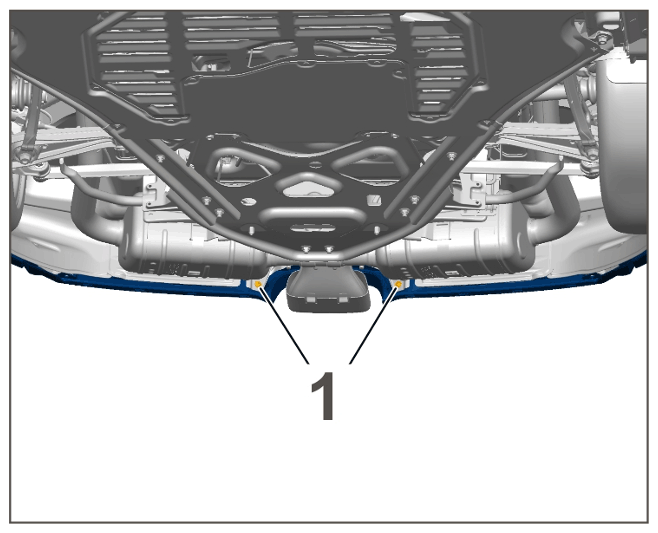

  4. Unscrew lower fastening screws at the centre -1-  .
    G14954365Courtesy of PORSCHE CARS NORTH AMERICA, INC.

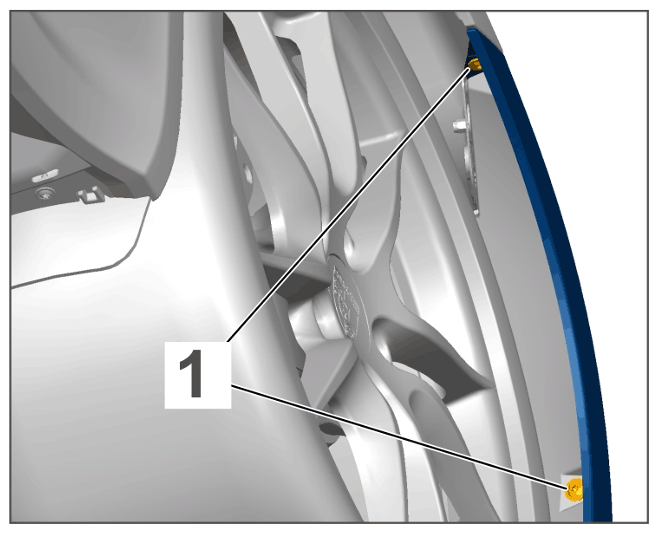

  5. Unscrew fastening screws in wheel housing -1-  .
    G14954366Courtesy of PORSCHE CARS NORTH AMERICA, INC.

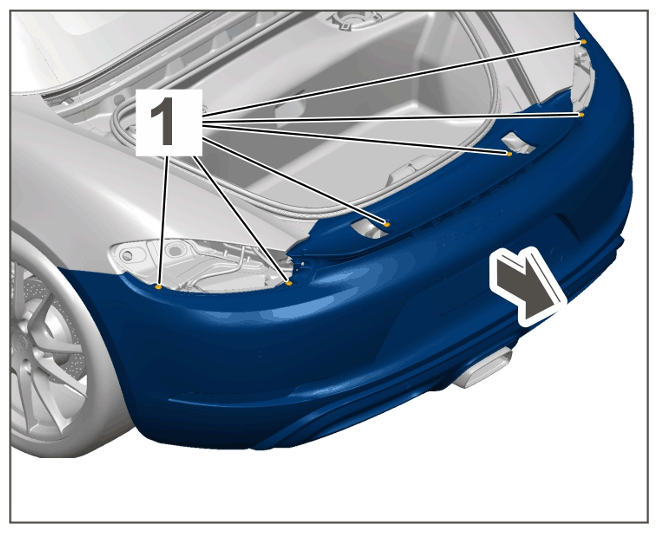

  6. Unscrew fastening screws at the top -1-  and remove rear apron -arrow-  .
G14954367Courtesy of PORSCHE CARS NORTH AMERICA, INC.
