Removing Reversing Light Switch

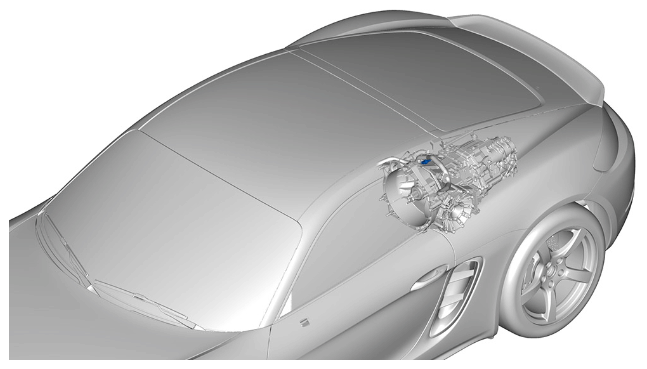

G14956232Courtesy of PORSCHE CARS NORTH AMERICA, INC.

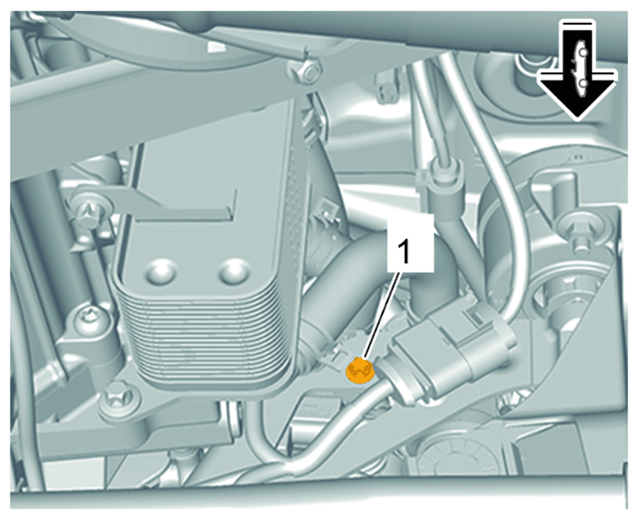

  1. Unscrew and remove fastening screw -1-  on the gear support.
    G14956233Courtesy of PORSCHE CARS NORTH AMERICA, INC.

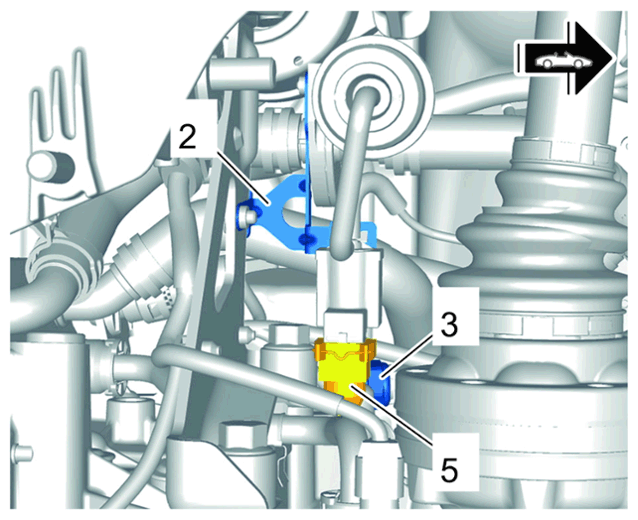

  2. Release and disconnect electric plug connection -5-  .
  3. Secure disc valve holder -2-  together with all add-on parts as far up as possible so that the reversing light switch is exposed -3-  .
    G14956234Courtesy of PORSCHE CARS NORTH AMERICA, INC.

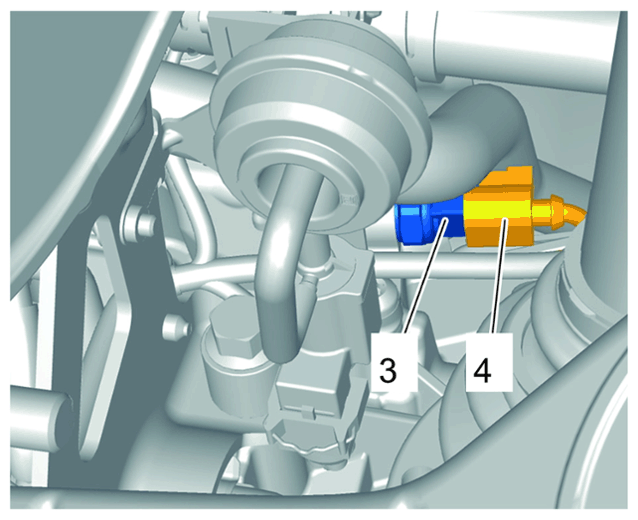

  4. Release and disconnect electric plug connection -4-  on reversing light switch -3-  .
  5. Unscrew reversing light switch -3-  and collect escaping oil.
G14956235Courtesy of PORSCHE CARS NORTH AMERICA, INC.
