Installing Additional Brake Light

Remove sealant residue from additional brake light and rear lid.
Information

The adhesive tape on the additional brake light must always be replaced during installation.
Stick on new seal for additional brake light.

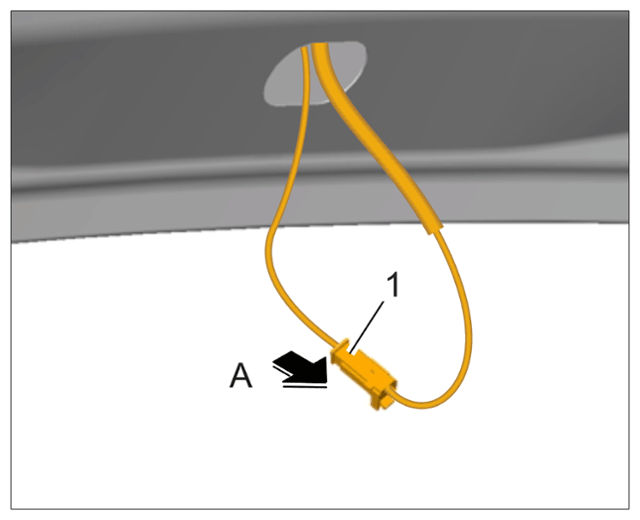

Plug electric plug connection -1- into additional brake light -arrow A- until it engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert additional brake light in rear lid.

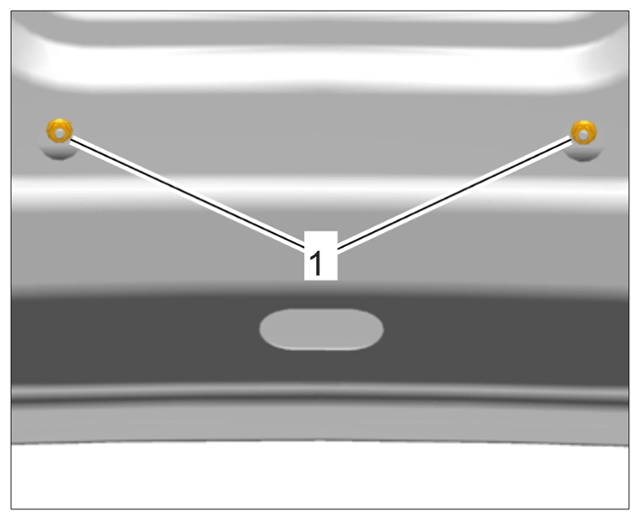

Screw in nuts -1- and tighten, using > 3.5 Nm (2.6 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

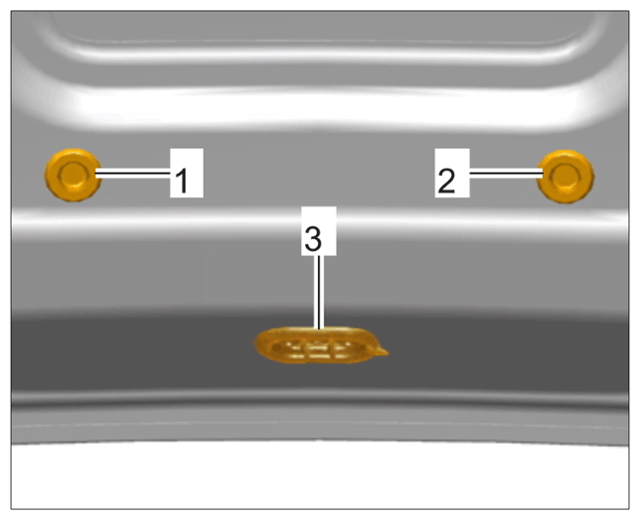

Press in rubber sleeves -1 to 3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check function of additional brake light.
