Removing And Installing Steering-Column Switch

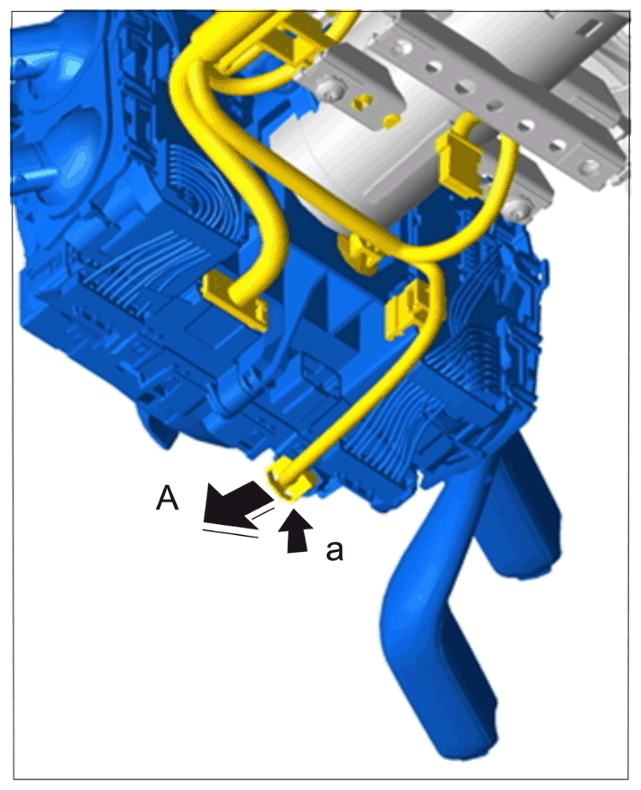

  1. Release electric plug connection -arrow a-  and disconnect it -arrow A-  .
    G14956206Courtesy of PORSCHE CARS NORTH AMERICA, INC.

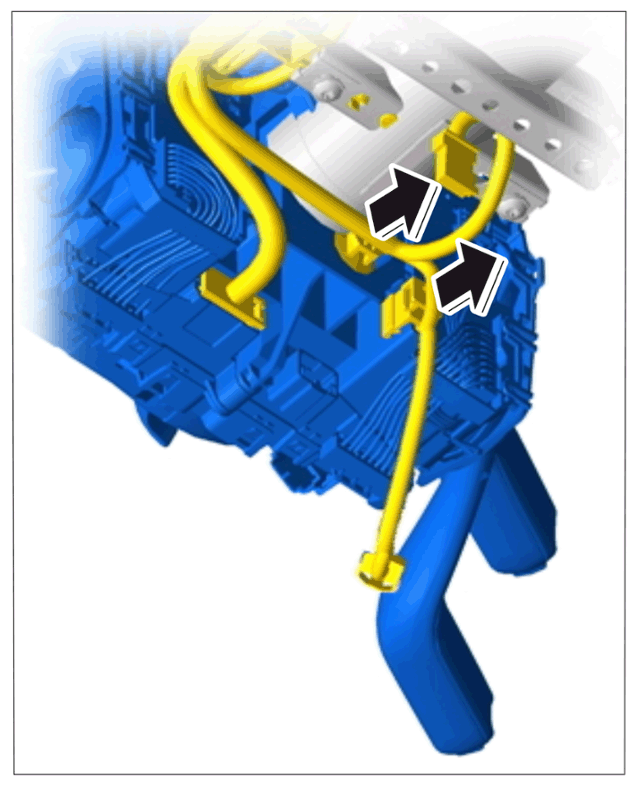

  2. Unclip electric lines -arrows-  .
    G14956207Courtesy of PORSCHE CARS NORTH AMERICA, INC.

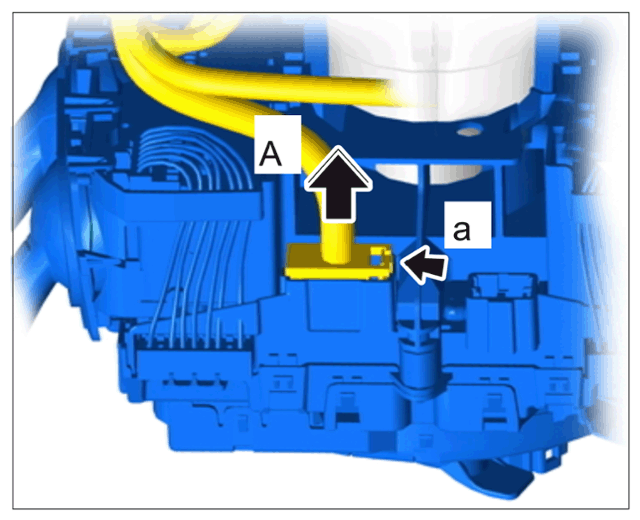

  3. Release electric plug connection -arrow a-  and disconnect it -arrow A-  .
    G14956208Courtesy of PORSCHE CARS NORTH AMERICA, INC.

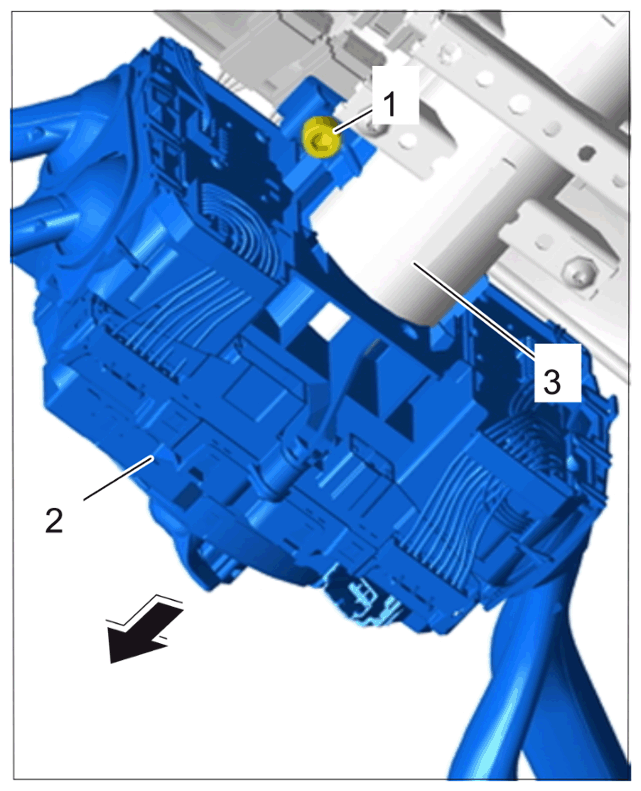

  4. Unscrew and remove screw -1-  .
  5. Remove steering-column switch -2-  with control unit for steering wheel electronics from the steering column -3-  (-arrow-  ).
    G14956209Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Installation is performed in reverse order. > Tightening torque 6 Nm (4.5 ftlb.)
