Removing And Installing Warning-Light Switch

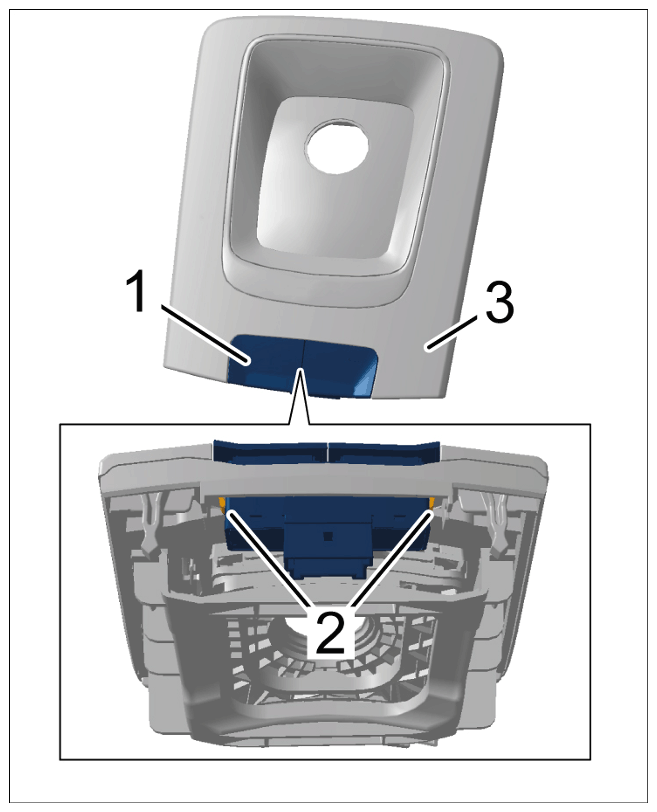

  1. Release locking lugs -2-  on selector-lever cover -3-  and remove warning-light switch -1-  .
    G14956200Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Installation is performed in reverse order.
