Removing And Installing Main Headlights

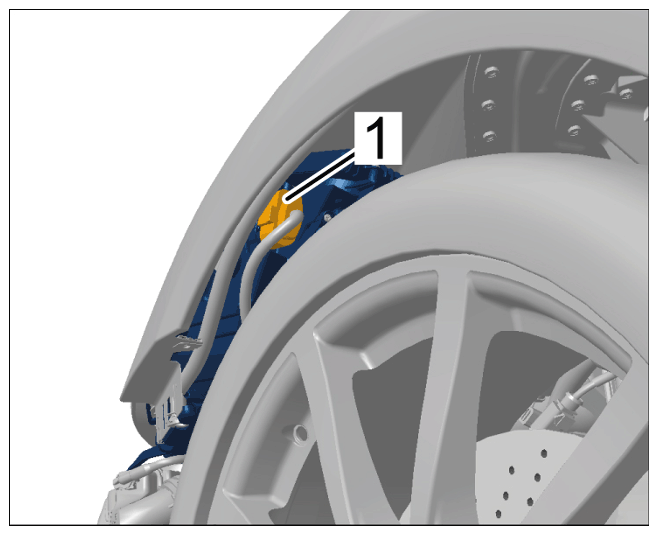

  1. Disconnect electric plug connection -1-  .
    G14956177Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Only loosen nuts as far as required until the headlight can be removed.

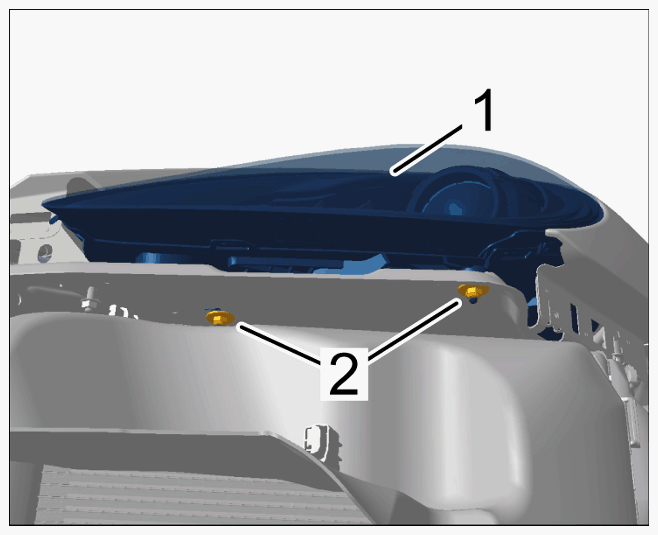

  2. Loosen nuts -2-  () and remove headlight -1-  .
    G14956178Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Installation is performed in reverse order.
