Packing Lithium-Ion Module With Battery Status "Normal"
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorised persons are permitted to work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, e.g. VAS 6883 High-voltage tool set, when working on these components.
→ Observe general warning notes for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
Information
Observe the following specifications for all work described:
- country-specific, national, legal and official regulations,
- local restrictions and export restrictions,
- manufacturer's specifications from component and vehicle manufacturers,
- component-specific specifications.
These strict specifications apply in particular:
- Storage, installation and removal, transport and disposal of vehicles, assemblies, operating materials and auxiliary materials,
- handling of defective and potentially hazardous vehicles as well as assemblies,
- handling of battery electric vehicles and high-voltage components.
For this purpose, take into account relevant and qualified information sources such as local authorities, responsible importers, associations and specialist website. Deliver items to be disposed of only to authorised reception points.
Information
- When packaging and sending lithium-ion batteries or lithium-ion modules, always follow the guidelines provided by the German Federal Office for Materials Research and Testing (BAM).
https://tes.bam.de/TES/Content/DE/Standardartikel/Regelwerke/Gefahrgut/gefahrgutvorschriften.html
https://tes.bam.de/TES/Content/DE/Standardartikel/Regelwerke/Gefahrgut/amtliche_mitteilungen.html
- Observe country-specific legal requirements.
- If you have questions, please contact your importer.
- Cover and insulate the positive and negative connections of the module.
- Place lithium-ion module in the transport box in which the new lithium-ion module was supplied by Porsche AG.
The supplied impact protection in the transport box must be fitted fully around the lithium-ion module.
- Put a copy of the test log for classification of the lithium-ion module in the transport box.
- Close the transport box.

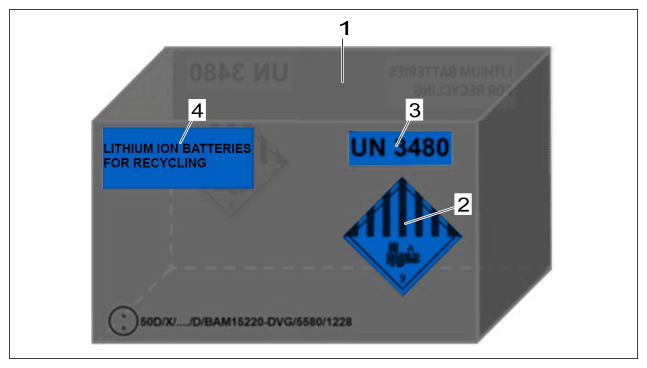

- Affix the following labels on one
long side of the transport box and check them:
Forms for the required hazardous goods stickers can be found in the HEOL Manual.
Labels for lithium-ion batteries for recycling
- "Hazardous goods class 9" label -2-
- "UN 3480, lithium-ion batteries" label -3-
- Identification sticker -4-
- Document bag
- Complete accompanying documentation and place it in the document bag together with another copy of the test log for classification of the lithium-ion module.
Information
The original test log for classification of the lithium-ion module must be kept in the Porsche Centre.
- Affix "Item number (large)" label on one short side of the transport box.
